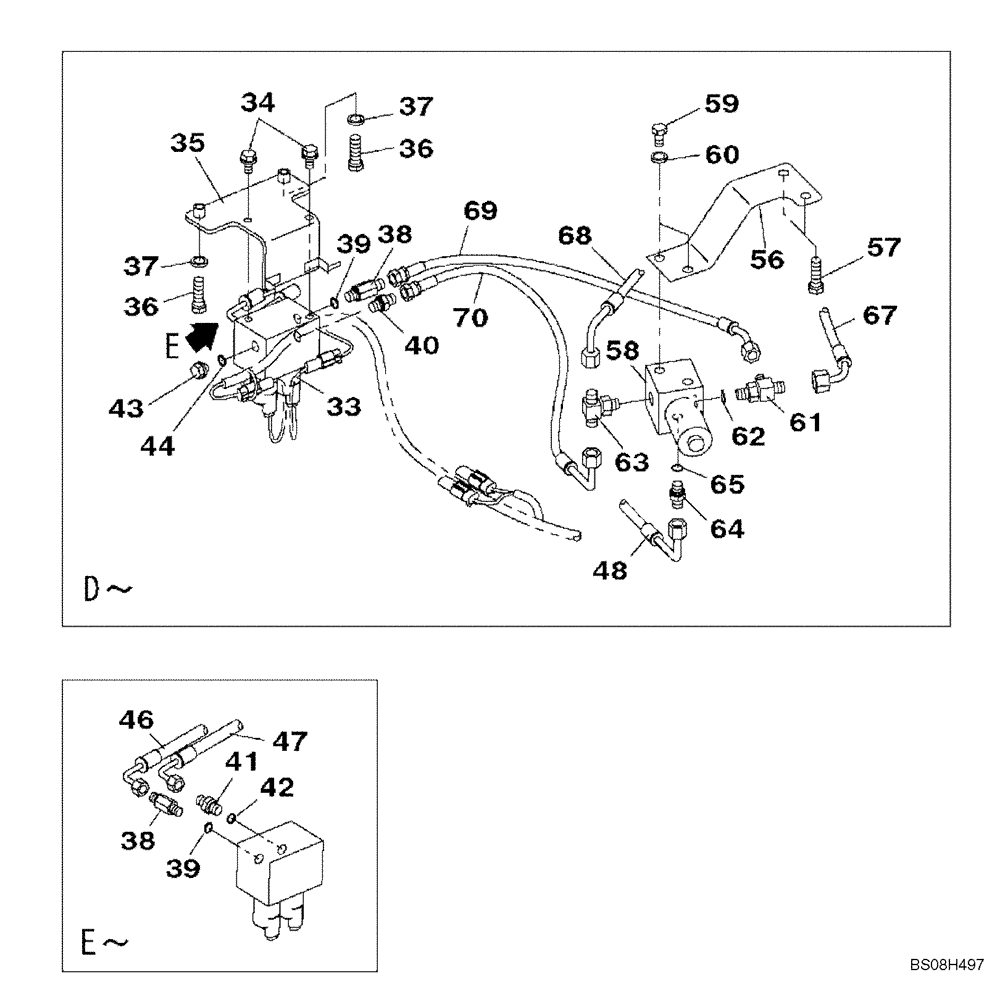

Запчасти Case CX470B (08-51) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

33

KHJ14000

VALVE SECTION

See Fig. 08-46

1шт.

34

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

35

KHJ14680

SUPPORT

1шт.

36

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

37

150409A1

WASHER

M10

2шт.

38

162554A1

FITTING

Incl. 39

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

161841A1

HYD CONNECTOR

1шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

159002A1

PLUG

1шт.

46

KHJ17990

HOSE

3150mm

1шт.

47

KHJ18960

HOSE

6x3400mm

1шт.

48

KHJ16310

HOSE

6x3850mm

1шт.

56

KHJ15730

SUPPORT

1шт.

57

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

58

162538A1

VALVE

1шт.

59

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

M6X16

2шт.

60

183-106VR

SPRING WASHER

2шт.

61

159497A1

TEE

Incl. 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

167321A1

TEE

1шт.

64

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHJ2086

HOSE,6.3mm ID x 700mm L

6X700mm

1шт.

68

KHJ2036

HOSE

6X750mm

1шт.

69

KHJ12100

HYDRAULIC HOSE

6X520mm

1шт.

70

KHJ2180

HOSE,6.3mm ID x 500mm L

6X500mm

1шт.
