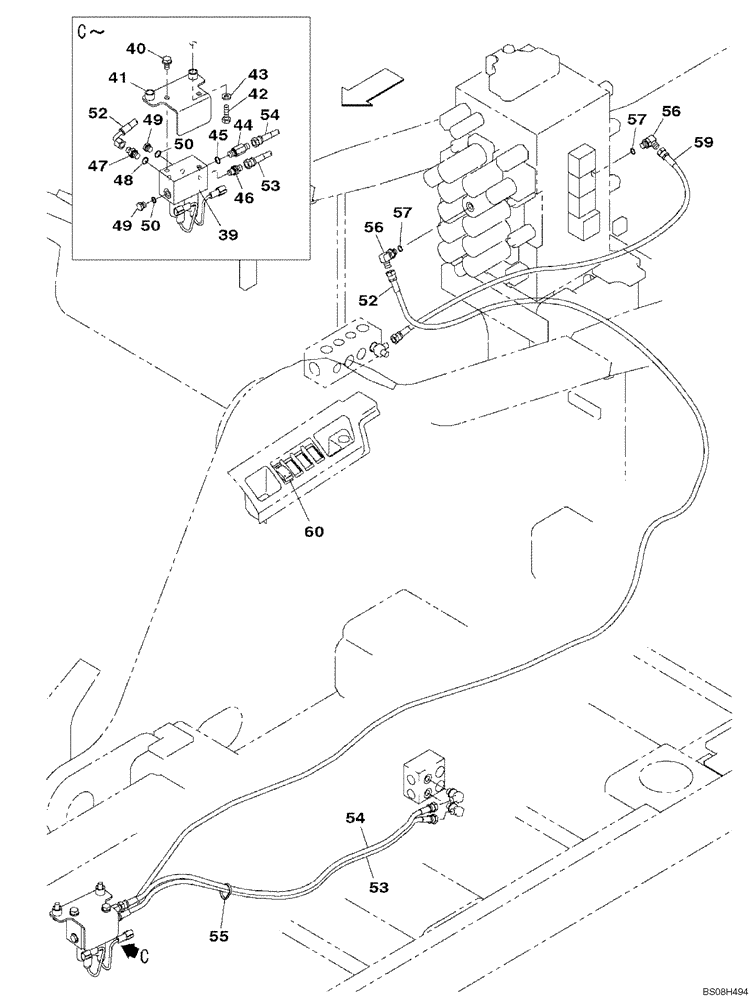

Запчасти Case CX470B (08-48) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

39

KHJ14000

VALVE SECTION

See Fig. 08-46

1шт.

40

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

41

KHJ14680

SUPPORT

1шт.

42

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

43

150409A1

WASHER

M10

2шт.

44

162554A1

FITTING

Incl. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

161841A1

HYD CONNECTOR

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

159002A1

PLUG

Incl. 50

2шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

KTJ12760

HOSE ASSY.

6X3200mm

1шт.

53

KHJ13650

HYDRAULIC HOSE

6X950mm

1шт.

54

KHJ15180

HYDRAULIC HOSE

6X900mm

1шт.

55

150496A1

MOUNTING CLIP

250mm

1шт.

56

156554A1

ELBOW

Incl. 57

2шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

157852A1

HOSE,6.30 mm ID x 1650.00 mm

1650mm

1шт.

60

KHR14060

SWITCH,Breaker

1шт.
