Запчасти Case CX470B (08-44) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

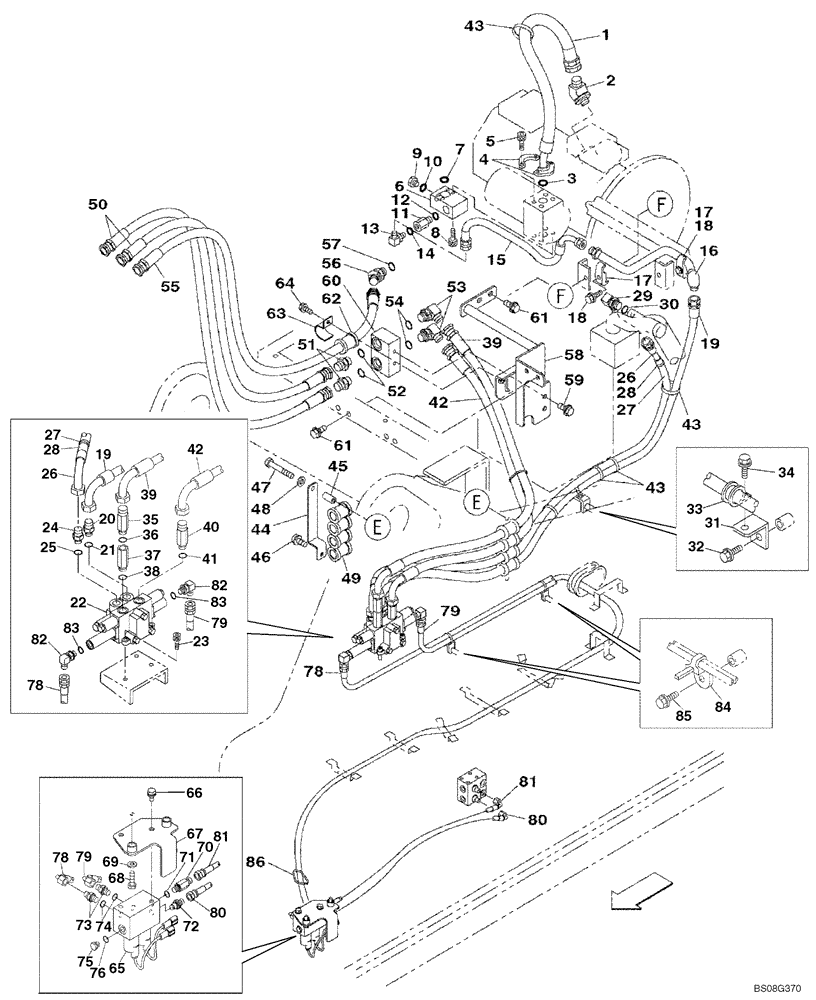

Схема запчастей Case CX470B - (08-44) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
73
34
21
76
11
33
36
56
61
53
30
79
42
60
37
43
80
40
29
43
18
78
23
63
18
14
19
2
54
27
50
41
70
79
81
13
43
72
24
81
61
47
49
65
7
48
32
78
85
22
44
9
38
17
15
55
71
8
5
27
84
59
45
83
10
35
7
29
16
17
20
86
1
31
82
74
80
68
66
25
83
51
3
28
52
26
82
57
75
28
78
6
62
12
26
79
39
46
58
67
64
42
69
39

Артикул

Название

Примечание

Количество

1

KTJ2373

HYDRAULIC HOSE,31.80 mm ID x 1030.00 mm

1шт.

2

157588A1

ELBOW

1шт.

3

164450A1

O-RING

1шт.

4

KHJ2621

FLANGE

2шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

6

KTJ2337

MANIFOLD

1шт.

7

154548A1

O-RING

1шт.

8

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

9

152924A1

PLUG

Include(s) 10

1шт.

10

154503A1

O-RING

1шт.

11

152012A1

ELEC CONNECTOR

Include(s) 12

1шт.

12

154503A1

O-RING

1шт.

13

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Include(s) 14

1шт.

14

154503A1

O-RING

1шт.

15

KTJ2374

HYDRAULIC HOSE,19.00 mm ID x 630.00 mm

1шт.

16

KTJ12890

HYD TUBE

1шт.

17

151486A1

CLAMP BRACKET

2шт.

18

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12X60

2шт.

19

KTJ12900

HYD TUBE

2050 mm

1шт.

22

168709A1

VALVE SECTION

See Figure(s) 08-45

1шт.

23

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

3шт.

24

161102A1

ADAPTER

Include(s) 25

1шт.

25

154487A1

O-RING

1шт.

26

KTJ2341

HYDRAULIC HOSE,19.00 mm ID x 1920.00 mm

1шт.

27

166124A1

PLASTIC-RUBBER TUBE

1шт.

28

150498A1

MOUNTING CLIP

2шт.

29

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Include(s) 30

1шт.

30

154503A1

O-RING

1шт.

31

KSJ2989

BRACKET

1шт.

32

166052A1

BOLT

M10X25

1шт.

33

KHJ2451

FIXING BRACKET

1шт.

34

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

1шт.

35

158759A1

HYD CONNECTOR

Include(s) 36

1шт.

36

154487A1

O-RING

1шт.

37

KHJ1070

STUD

Include(s) 38

1шт.

38

154487A1

O-RING

1шт.

39

KTJ12050

HYDRAULIC HOSE

1460 mm

1шт.

40

158759A1

HYD CONNECTOR

Include(s) 41

1шт.

41

154487A1

O-RING

1шт.

42

KTJ12040

HYDRAULIC HOSE

1шт.

43

150498A1

MOUNTING CLIP

4шт.

44

KTJ12000

BRACKET

1шт.

45

KTJ12010

SPACER

1шт.

46

166052A1

BOLT

M10X25

1шт.

47

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

1шт.

48

150409A1

WASHER

1шт.

49

KHJ2023

HOSE CLAMP

4шт.

50

KTJ12830

HYDRAULIC HOSE

2шт.

51

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Include(s) 52

2шт.

52

154503A1

O-RING

1шт.

53

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Include(s) 54

2шт.

54

154503A1

O-RING

1шт.

55

KTJ12820

HYDRAULIC HOSE

1450 mm

1шт.

56

157586A1

ELBOW

Include(s) 57

1шт.

57

154503A1

O-RING

1шт.

58

KTJ12850

BRACKET

1шт.

59

166352A1

BOLT

M12X30

2шт.

60

KTJ12840

MANIFOLD VALVE

1шт.

61

166352A1

BOLT

M12X30

4шт.

62

KHJ2023

HOSE CLAMP

1шт.

63

KHJ2025

CLAMP

1шт.

64

166052A1

BOLT

M10X25

1шт.

65

KHJ14000

VALVE SECTION

See Figure(s) 08-46

1шт.

66

166351A1

BOLT,Sems, M10 x 20mm

M10X20

1шт.

67

KHJ15190

SUPPORT

1шт.

68

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

69

150409A1

WASHER

M10

2шт.

70

162554A1

FITTING

Include(s) 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

161841A1

HYD CONNECTOR

1шт.

73

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Include(s) 74

2шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

159002A1

PLUG

Include(s) 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

1шт.

79

KHJ12230

HYDRAULIC HOSE

3450 mm

1шт.

80

KHJ2088

HOSE

850 mm

1шт.

81

KHJ2088

HOSE

850 mm

1шт.

82

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Include(s) 83

2шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

KHR2581

CLAMP

2шт.

85

KHJ1215

BOLT,Spcl

M8X25

2шт.

86

150498A1

MOUNTING CLIP

1шт.

Выбрано товаров: 83
