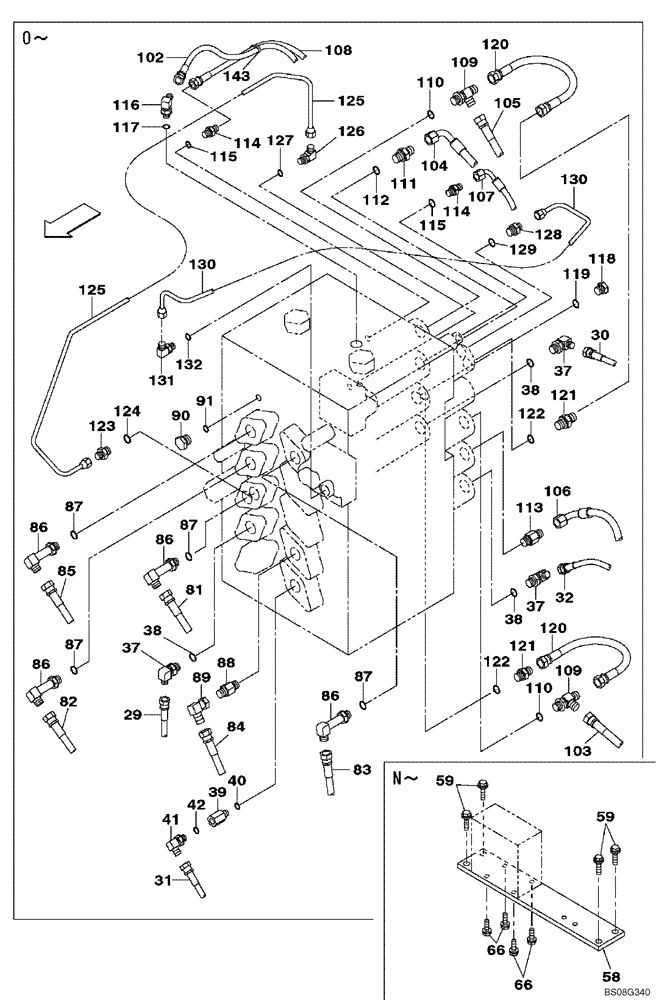

Запчасти Case CX470B (08-38) - PILOT CONTROL LINES, CONTROL VALVE - STANDARD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
29
KHJ18960
HOSE
3400 mm
1шт.
30
KHJ16300
HOSE
3650 mm
1шт.
31
KHJ13650
HYDRAULIC HOSE
3200 mm
1шт.
32
KHJ15170
HYDRAULIC HOSE
3500 mm
1шт.
37
156554A1
ELBOW
Include(s) 38
3шт.
38
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
39
KHJ1212
STUD
Include(s) 40
1шт.
40
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
41
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 42
1шт.
42
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
58
KHJ13750
SUPPORT
1шт.
59
166352A1
BOLT
M12X30
4шт.
66
166052A1
BOLT
M10X25
4шт.
81
152763A1
HOSE ASSY.
1600 mm
1шт.
82
152763A1
HOSE ASSY.
1600 mm
1шт.
83
152763A1
HOSE ASSY.
1600 mm
1шт.
84
157963A1
HOSE
1400 mm
1шт.
85
152713A1
HOSE ASSY.
1700 mm
1шт.
86
KHJ1442
ELBOW
Include(s) 87
4шт.
87
154475A1
O-RING
1шт.
88
KAJ2851
ADAPTER
1шт.
89
153526A1
ELBOW
1шт.
90
159002A1
PLUG
Include(s) 91
1шт.
91
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
102
KAJ3093
HYDRAULIC HOSE
2400 mm
1шт.
103
159072A1
HOSE
1650 mm
1шт.
104
161661A1
HYDRAULIC HOSE
1850 mm
1шт.
105
159074A1
HOSE
1850 mm
1шт.
106
159229A1
HOSE ASSY.
1шт.
107
161485A1
HOSE ASSY.
1850 mm
1шт.
108
159004A1
HOSE
2150 mm
1шт.
109
164107A1
TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT
Include(s) 110
2шт.
110
154475A1
O-RING
1шт.
111
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Include(s) 112
1шт.
112
154475A1
O-RING
1шт.
113
KAJ2851
ADAPTER
1шт.
114
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Include(s) 115
2шт.
115
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
116
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Include(s) 117
1шт.
117
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
153105A1
PLUG
Include(s) 119
1шт.
119
154475A1
O-RING
1шт.
120
KRJ5441
HYDRAULIC HOSE,9.50 mm ID x 400.00 mm
2шт.
121
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Include(s) 122
2шт.
122
154475A1
O-RING
1шт.
123
KHJ1821
NIPPLE, LUBE
NIPPLE Include(s) 124
1шт.
124
154475A1
O-RING
1шт.
125
KTJ2117
HYD TUBE,6 mm ID x 8 mm OD
1шт.
126
KHJ1391
COUPLING
Include(s) 127
1шт.
127
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
128
KHJ1821
NIPPLE, LUBE
NIPPLE Include(s) 129
1шт.
129
154475A1
O-RING
1шт.
130
KTJ2118
HYD TUBE,6 mm ID x 8 mm OD
1шт.
131
KHJ1391
COUPLING
Include(s) 132
1шт.
132
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
143
150496A1
MOUNTING CLIP
1шт.
Выбрано товаров: 56
