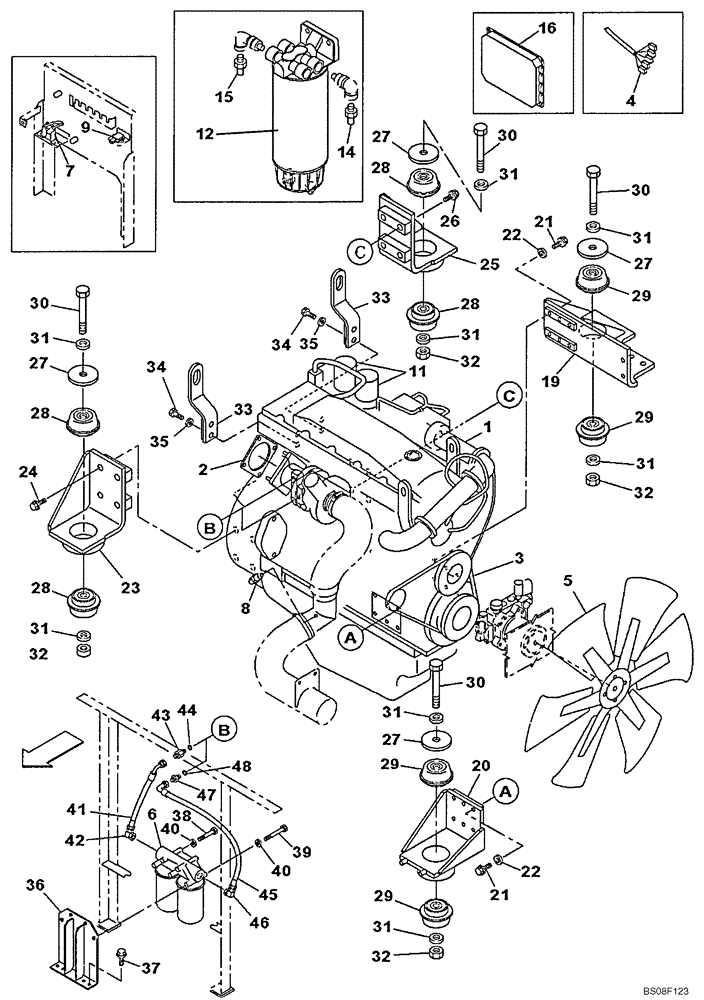

Запчасти Case CX470B (02-01) - ENGINE - ENGINE MOUNTING (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
KTH10840
ENGINE
Incls.02-08 - 02-45, 03-03 - 03-07, 04-07 - 04-04
1шт.
1
KTH10840EC
CORE-ENGINE
Environmental Core, For N.A. Only
1шт.
2
NSS
NOT SOLD SEPARAT
Gasket, See Fig. 02-45, Ref. 84
1шт.
3
NSS
NOT SOLD SEPARAT
Belt, See Fig. 02-32, Ref. 185
1шт.
4
NSS
NOT SOLD SEPARAT
Harness, See Fig. 04-04, Ref. 13
1шт.
5
NSS
NOT SOLD SEPARAT
Fan, See Fig. 02-32, Ref. 1
1шт.
6
NSS
NOT SOLD SEPARAT
Filter, See Fig. 02-35, Ref. 496
1шт.
7
NSS
NOT SOLD SEPARAT
Relay, See Fig. 04-03, Ref. 424
1шт.
8
NSS
NOT SOLD SEPARAT
Sensor, See Fig. 04-03, Ref. 608
1шт.
9
NSS
NOT SOLD SEPARAT
Sensor, See Fig. 04-03, Ref. 520
1шт.
11
NSS
NOT SOLD SEPARAT
Fuel Filter, See Fig. 03-06, Ref. 1
2шт.
12
NSS
NOT SOLD SEPARAT
See Fig. 03-06, Ref. 35
1шт.
14
KHH10660
FITTING
1шт.
15
KHH10670
FITTING
1шт.
16
REF
INSTRUCTION
ELECTRONIC UNIT, CONTROL, See Fig. 04-03, Ref. 613
1шт.
19
KTH10310
ENGINE MOUNT
1шт.
20
KTH10830
SILENTBLOC
1шт.
22
150409A1
WASHER
12шт.
23
KTH10330
ENGINE MOUNT
1шт.
24
166349A1
BOLT,Sems, M16 x 65mm
4шт.
25
KTH10320
ENGINE MOUNT
1шт.
26
166373A1
BOLT,Sems, M16 x 40mm
4шт.
27
150874A1
WASHER
4шт.
28
KTH10050
SILENTBLOC
4шт.
29
KSH0892
SILENTBLOC
4шт.
30
827-20150
BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9
4шт.
31
150817A1
WASHER,21mm ID x 40mm OD x 4.5mm Thk
8шт.
32
KSH0923
SPECIAL NUT
4шт.
33
KTH10360
SUPPORT
2шт.
34
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
4шт.
35
150811A1
WASHER
4шт.
36
KUH10140
SUPPORT
1шт.
37
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
38
102R010Y110R
BOLT
2шт.
39
102R010Y140R
BOLT
3шт.
40
150409A1
WASHER
5шт.
41
KTH10340
HYDRAULIC HOSE,19.05 mm ID x 550.00 mm
1шт.
42
169174A1
ELBOW
1шт.
43
169040A1
ADAPTER
1шт.
45
KTH10350
HYDRAULIC HOSE,19.05 mm ID x 380.00 mm
1шт.
46
169174A1
ELBOW
1шт.
47
169040A1
ADAPTER
1шт.
Выбрано товаров: 45
