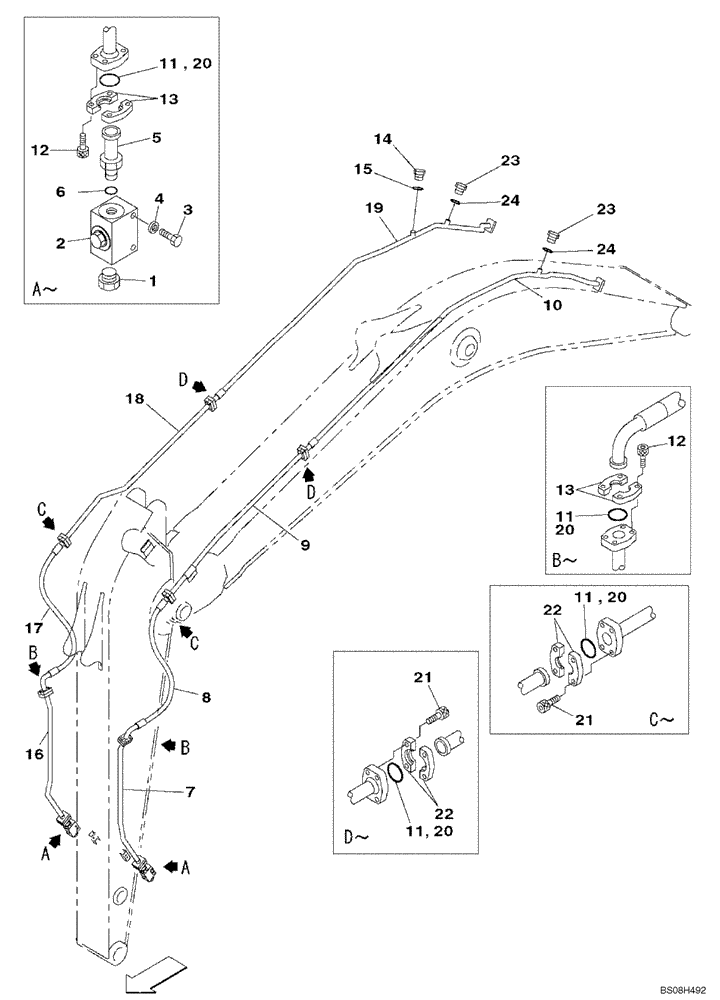

Запчасти Case CX470B (08-28) - HYDRAULICS, AUXILIARY ATTACHMENT - STANDARD ARM (08) - HYDRAULICS

1

162335A1

PLUG

2шт.

2

KHV11100

SHUT-OFF VALVE

2шт.

3

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

M12 x 100

4шт.

4

150811A1

WASHER

4шт.

5

KHV0451

FITTING

Incl 6

2шт.

6

154559A1

O-RING

1шт.

7

KTV13070

HYD TUBE,42.70mm OD x 1556.70mm L

Replaces KTV13070Y2

1шт.

8

KWV11490

HYDRAULIC HOSE

1900mm, Replaces KBV15980

1шт.

9

KTV15010Y2

HYD TUBE

1шт.

10

KTV13030Y2

HYD TUBE

1шт.

11

164450A1

O-RING

4шт.

12

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

16шт.

13

150124A1

FLANGE

8шт.

14

152924A1

PLUG

Incl 15

1шт.

15

154503A1

O-RING

1шт.

16

KTV13060

HYD TUBE,42.70mm OD x 1556.70mm L

Replaces KTV13060Y2

1шт.

17

KWV11490

HYDRAULIC HOSE

1900mm, Replaces KBV15980

1шт.

18

KTV15000Y2

HYD TUBE

1шт.

19

KTV13020Y2

HYD TUBE

1шт.

20

164450A1

O-RING

4шт.

21

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

16шт.

22

150124A1

FLANGE

8шт.

23

152924A1

PLUG

Incl 24

2шт.

24

154503A1

O-RING

1шт.
