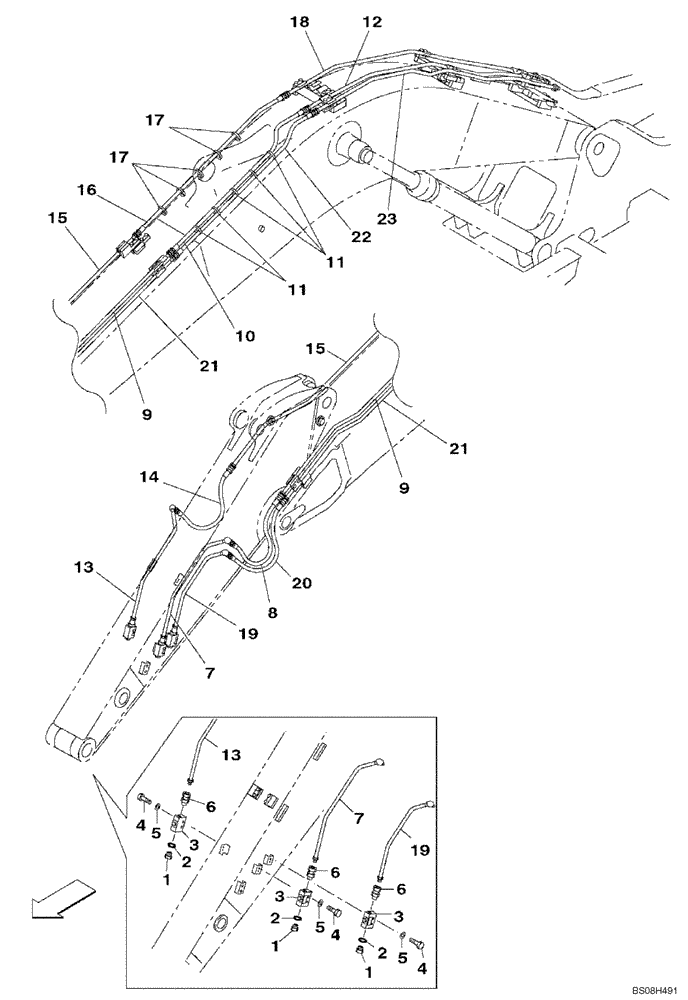

Запчасти Case CX470B (08-16) - HYDRAULIC LINES - ARM - OPTIONAL - SHORT (08) - HYDRAULICS

1

152924A1

PLUG

Incls. Ref. 2

2шт.

2

154503A1

O-RING

2шт.

3

KHV10710

VALVE

2шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

M12X75

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KTV15400

HYD TUBE,27.20mm OD x 826mm L

L

1шт.

8

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

1шт.

9

KTV14640Y2

HYD TUBE

PIPE ASSY., L

1шт.

10

KTV15510

HYDRAULIC HOSE,2000.00 mm

Assy

1шт.

11

150071A1

MOUNTING CLIP

380mm

5шт.

12

KTV15390

HYD TUBE,27.20mm OD x 826mm L

PIPE ASSY., L

1шт.

13

KTV13140Y2

HYD TUBE

R

1шт.

14

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

1шт.

15

KTV14630Y2

HYD TUBE

PIPE ASSY., R

1шт.

16

KTV15510

HYDRAULIC HOSE,2000.00 mm

Assy

1шт.

17

150071A1

MOUNTING CLIP

380mm

5шт.

18

KTV15520Y2

HYD TUBE

PIPE ASSY., R

1шт.

19

KTV15410

HYD TUBE,27.20mm OD x 515mm L

1шт.

20

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

1шт.

21

KTV14610Y2

HYD TUBE

PIPE ASSY., L

1шт.

22

KTV15510

HYDRAULIC HOSE,2000.00 mm

Assy

1шт.

23

KTV15540Y2

HYD TUBE

PIPE ASSY.

1шт.
