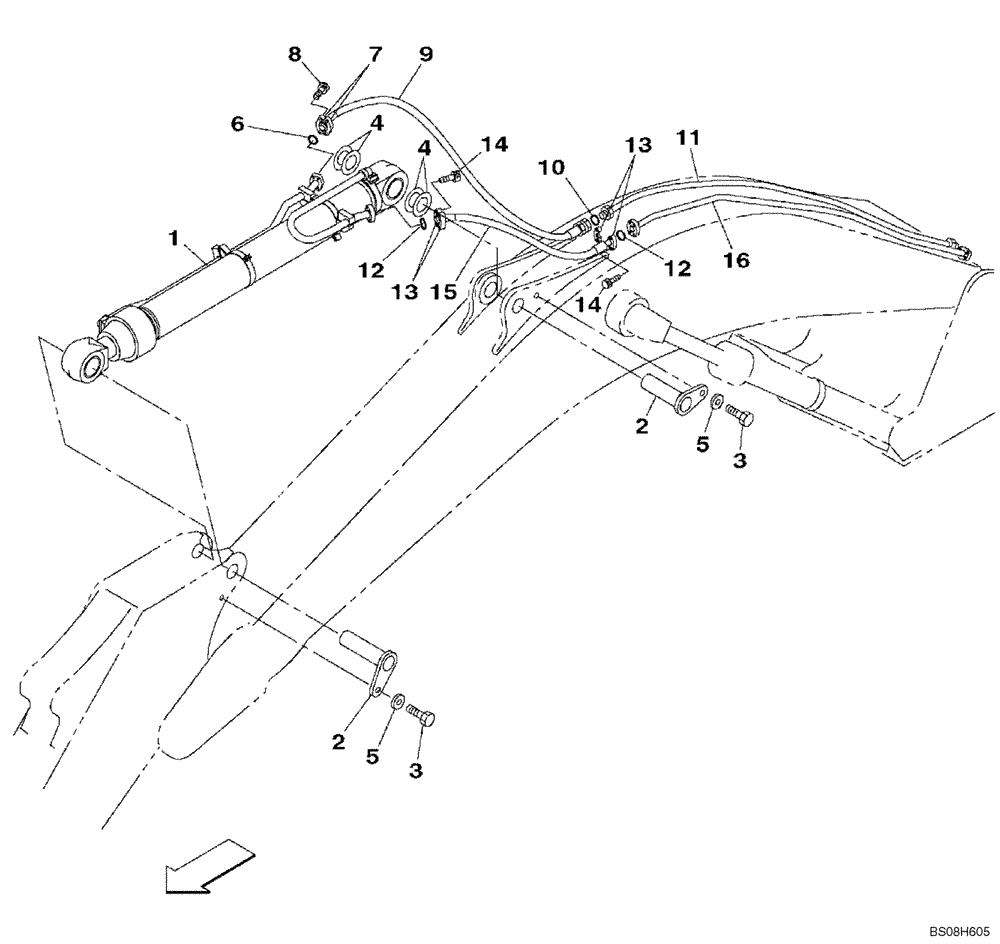

Запчасти Case CX470B (08-12A) - HYDRAULICS - ARM CYLINDER LINE (08) - HYDRAULICS

1

KTV12731

HYDRAULIC CYLINDER

HYDRAULIC CYLINDER, Arm; Incl. 3, See Fig. 08-99

1шт.

2

KTV1273

PIN

2шт.

3

102R020Y035R

BOLT

M20x35

2шт.

4

KMV1518

SHIM,0.6mm Thk

4шт.

5

KTV1185

SPACER

2шт.

6

164450A1

O-RING

1шт.

7

150124A1

FLANGE

2шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14x50

4шт.

9

KTV13270

HYDRAULIC HOSE,1400.00 mm

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

11

KTV14521

HYD TUBE

1шт.

12

164450A1

O-RING

2шт.

13

150124A1

FLANGE

4шт.

14

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14x50

8шт.

15

KTV13280

HYDRAULIC HOSE,1400.00 mm

1шт.

16

KTV14531

HYD TUBE,42.70mm OD x 2753.90mm L

1шт.
