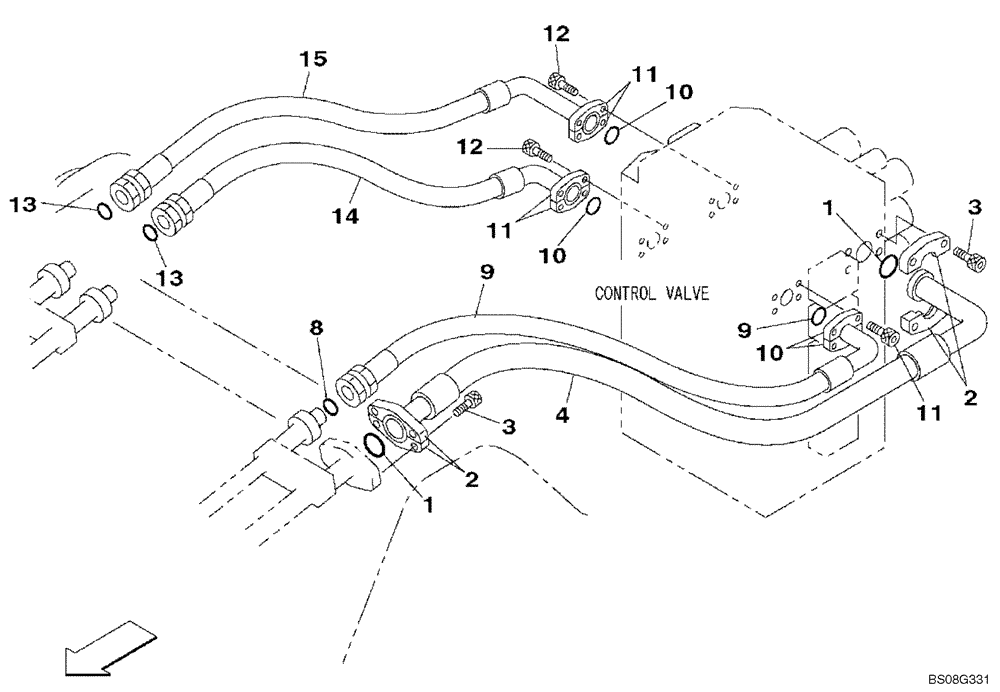

Запчасти Case CX470B (08-10) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

164450A1

O-RING

2шт.

2

150124A1

FLANGE

4шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 X 45

8шт.

4

KTJ12100

HYDRAULIC HOSE

32 X 1650 mm

1шт.

5

155211A1

O-RING

1шт.

6

153459A1

FLANGE

2шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

8

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

9

KTJ12110

HYDRAULIC HOSE

25 X 1450 mm

1шт.

10

155211A1

O-RING

2шт.

11

153459A1

FLANGE

4шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KTJ12110

HYDRAULIC HOSE

25 X 1450 mm

1шт.

15

KTJ12120

HYDRAULIC HOSE

25 X 1600 mm

1шт.
