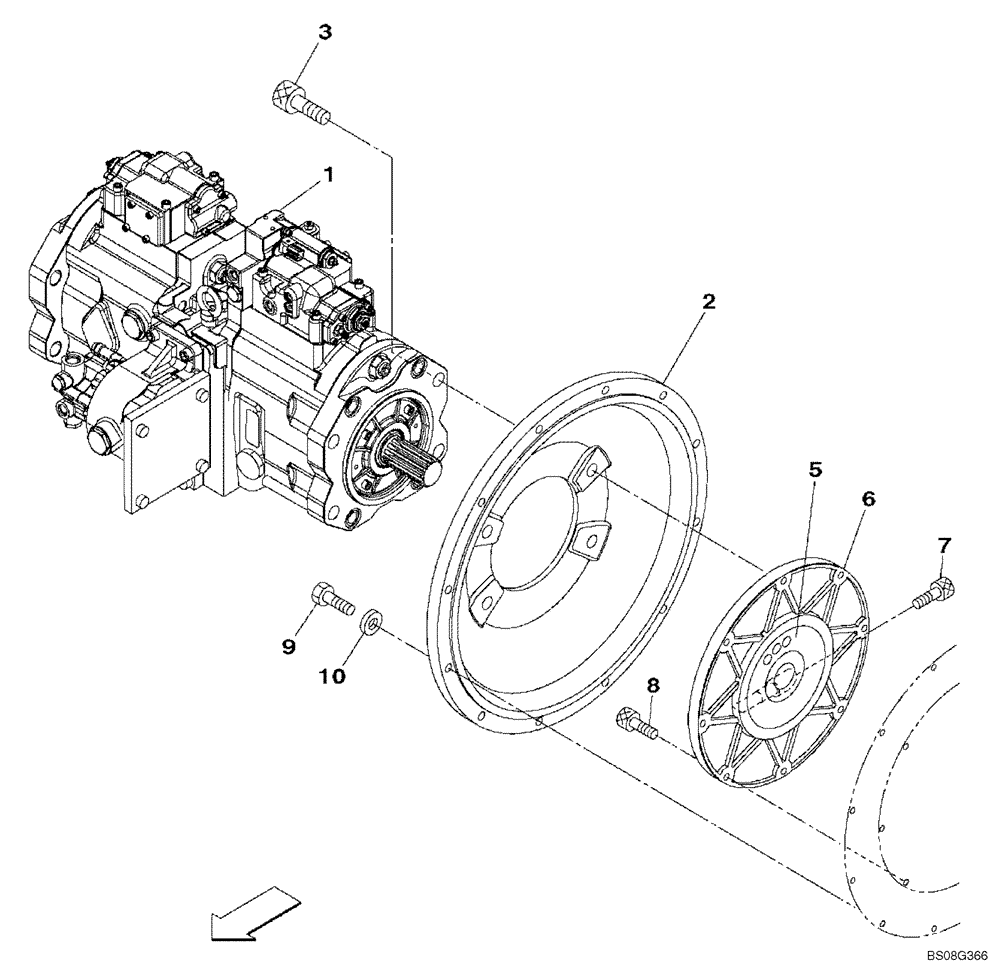

Запчасти Case CX470B (08-02) - PUMP ASSY, HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KTJ11640

HYDRAULIC PUMP

STANDARD, See Figure 08-89 - 08-94

1шт.

1

KTJ11640R

REMAN-HYD PUMP

CX470B CRAWLER EXCAVATOR TIER 3 (NA), PUMP ASSY, STANDARD (9/08-)

1шт.

1

KTJ11640C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

KTJ11650

PUMP, HYDRAULIC, OPTIONAL, See Figure 08-

1шт.

2

KTJ10290

FLANGE

1шт.

3

108R020Y065R

BOLT

4шт.

KTJ2232

COUPLING

Incl. 5 - 7

1шт.

5

KTJ2233

HUB

1шт.

6

KTJ2234

FLANGE

1шт.

7

KTJ2100

BOLT,Spcl

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

9шт.

10

150811A1

WASHER

9шт.
