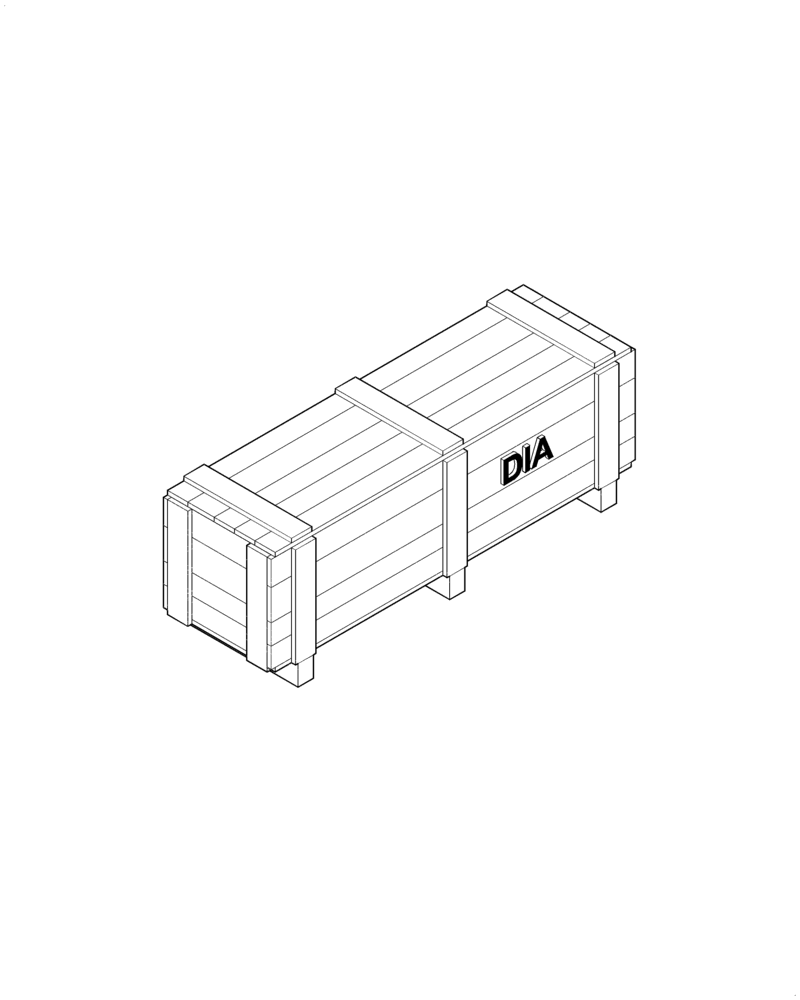

Запчасти Case CX470B (00-002[00]) - DIA KIT, ADDITIONAL PRODUCTS (00) - PICTORIAL INDEX

.

Attachment Kits

1шт.

.

ATT Reinforce plate (Boom + Arm)

1шт.

1

KG0TP384-00

CONSTRUCTION DIA

1шт.

.

HD BUCKET LINKAGE

1шт.

2

KTV13320

LINK CONROD

Bucket

1шт.

3

KTV1309

LINKAGE YOKE

Side RH

1шт.

4

KTV1310

LINKAGE YOKE

Side LH

1шт.

.

AUX. HYDRAULICS (Single Acting)

1шт.

5

KG0TP410-00

CONSTRUCTION DIA

AUX. Hydraulics (Single Acting) Base/Boom, Pedal

1шт.

6

KG0TP412-00

CONSTRUCTION DIA

AUX. Hydraulics (Single Acting) Base/Boom, Switch

1шт.

7

KG0TP388-00

CONSTRUCTION DIA

Boom

1шт.

8

KG0TP390-00

CONSTRUCTION DIA

2.53m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

9

KG0TP389-00

CONSTRUCTION DIA

3.38m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

.

AUX. HYDRAULICS (Multi Function)

1шт.

10

KG0TP411-00

CONSTRUCTION DIA

AUX. Hydraulics (Multi Function) Base/Boom, Pedal

1шт.

11

KG0TP413-00

CONSTRUCTION DIA

AUX. Hydraulics (Multi Function) Base/Boom, Switch

1шт.

12

KG0TP388-00

CONSTRUCTION DIA

Boom

1шт.

13

KG0TP390-00

CONSTRUCTION DIA

2.53m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

14

KG0TP389-00

CONSTRUCTION DIA

3.38m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

.

AUX. HYDRAULICS (Low Flow)

1шт.

15

KG0TP392-00

CONSTRUCTION DIA

AUX. Hydraulics (Low Flow) Base/Boom, Pedal

1шт.

16

KG0TP393-00

CONSTRUCTION DIA

AUX. Hydraulics (Low Flow) Base/Boom, Switch

1шт.

17

KG0TP385-00

CONSTRUCTION DIA

Boom

1шт.

18

KG0TP387-00

CONSTRUCTION DIA

2.53m Arm for AUX. Hydraulics (Low Flow)

1шт.

19

KG0TP386-00

CONSTRUCTION DIA

3.38m Arm for AUX. Hydraulics (Low Flow)

1шт.

.

Non-Attachment Kits

1шт.

20

KG0TP398-00

CONSTRUCTION DIA

Lever Pattern Change Valve (2way)

1шт.

21

KG0TR188-00

CONSTRUCTION DIA

Refuel Pump

1шт.

22

KG0HN352-00

CONSTRUCTION DIA

Head Guard on Cab (FOPS Level II)

1шт.

23

KG0HN401-00

CONSTRUCTION DIA

Head Guard (FOPS level II) On Platform

1шт.

24

KG0HN317-00

CONSTRUCTION DIA

Cab Upper Front Screen (Mesh)

1шт.

25

KG0HN396-00

CONSTRUCTION DIA

Cab Upper Front Screen (Mesh) W/ Head Guard

1шт.

26

KG0HN316-00

CONSTRUCTION DIA

FRONT SCREEN (Mesh) Lower

1шт.

27

KG0HN318-00

CONSTRUCTION DIA

Cab Front Grill (Bar - OPG Level 1)

1шт.

28

KG0HN395-00

CONSTRUCTION DIA

Cab Front Grill (Bar - OPG Level 1) W/ Head Guard

1шт.

29

KG0HN319-00

CONSTRUCTION DIA

Cab Front Grill (Bar - OPG Level 2)

1шт.

30

KG0HP229-00

CONSTRUCTION DIA

Cab (w/ guard) LIGHTS (Harness) W/ Front Guard

1шт.

31

KG0HP268-00

CONSTRUCTION DIA

Cab (w/ guard) LIGHTS (Harness) W/ Head Guard

1шт.

32

KG0HP225-00

CONSTRUCTION DIA

Cab Sunvisor

1шт.

33

KG0HN413-00

CONSTRUCTION DIA

Vandal Cover

1шт.

34

KG0TP396-00

CONSTRUCTION DIA

Free Swing

1шт.

35

KG0HP298-00

CONSTRUCTION DIA

Rubber Bumper Guard

9шт.

36

KG0HP301-00

DECAL KIT

French Canadian Warning Labels

1шт.

37

KG0HP302-00

DECAL KIT

French Canadian Warning Labels W/Control Pattern Selector Valve

1шт.
