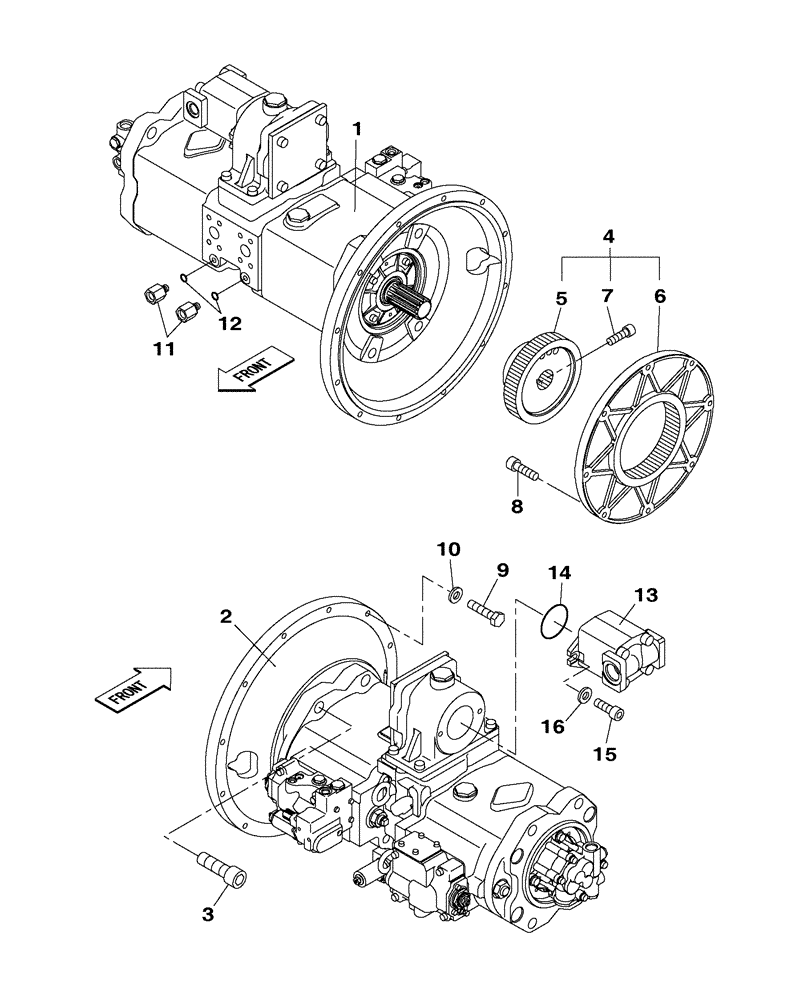

Запчасти Case CX350B (08-09[02]) - HYDRAULIC PUMP - COUPLING - WITH AUXILIARY HYDRAULICS (08) - HYDRAULICS

1

KSJ12240

HYDRAULIC PUMP

See Figure(s) 08-91 - 08-92

1шт.

KSJ12240R

REMAN-HYD PUMP

CX350B TIER 3 (5/08-)

1шт.

KSJ12240C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KTJ2041

FLANGE

1шт.

3

108R020Y065R

BOLT

4шт.

4

KSJ12610

COUPLING FLANGE

1шт.

Include(s) 5 - 7

1шт.

5

KSJ12620

HUB

1шт.

6

KTJ2234

FLANGE

1шт.

7

KTJ2100

BOLT,Spcl

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

10

150409A1

WASHER

9шт.

11

KHJ18180

STUD

2шт.

Include(s) 12

1шт.

12

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

KRJ10300

HYDRAULIC PUMP

1шт.

13

KRJ10300R

REMAN-HYD PUMP

CX350B CRAWLER EXCAVATOR TIER 3 (NA), WITH AUXILIARY HYDRAULICS (5/08-)

1шт.

13

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

154697A1

O-RING

1шт.

15

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

16

150409A1

WASHER

2шт.
