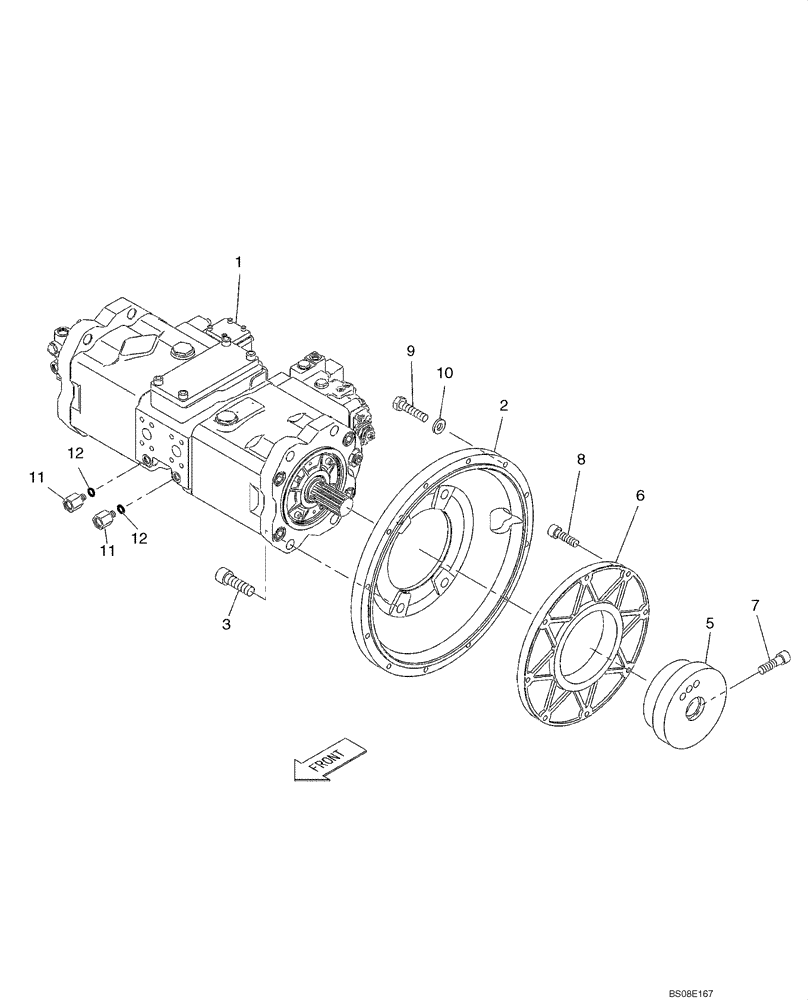

Запчасти Case CX350B (08-09[01]) - HYDRAULIC PUMP - COUPLING (STANDARD) (08) - HYDRAULICS

1

KSJ12240

HYDRAULIC PUMP

See Figures 08-16 - 08-20

1шт.

KSJ12240R

REMAN-HYD PUMP

CX350B TIER 3 (5/08-)

1шт.

KSJ12240C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KTJ2041

FLANGE

1шт.

3

108R020Y065R

BOLT

M20X65

4шт.

4

KSJ12610

COUPLING FLANGE

Incl. 5-7

1шт.

5

KSJ12620

HUB

1шт.

6

KTJ2234

FLANGE

1шт.

7

KTJ2100

BOLT,Spcl

M16X35

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

10

150409A1

WASHER

M10

9шт.

11

KHJ18180

STUD

Incl. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
