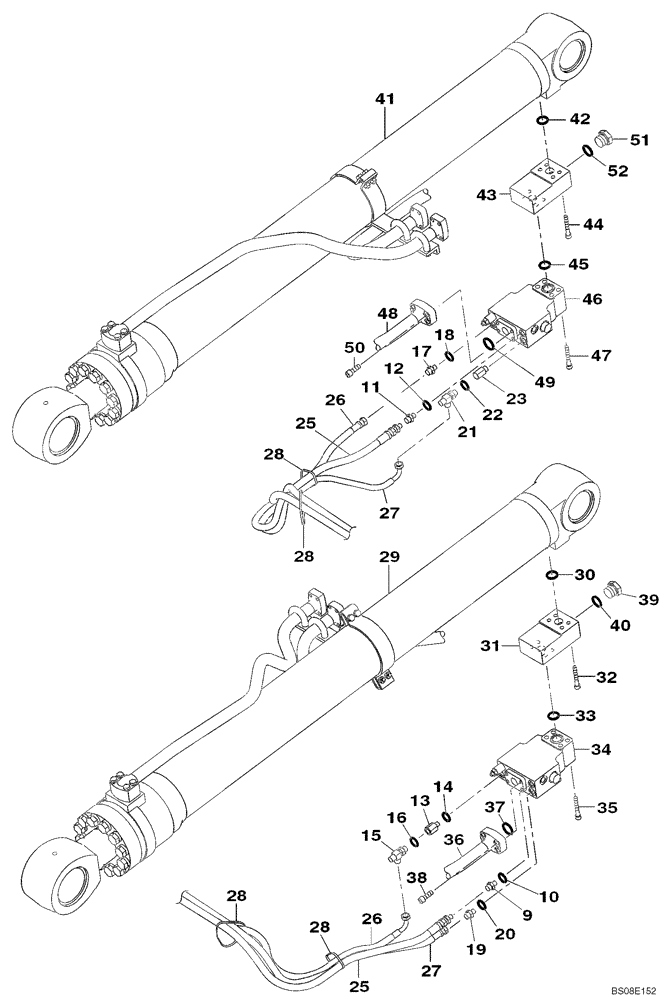

Запчасти Case CX350B (08-08) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

9

152747A1

ADAPTER

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

152747A1

ADAPTER

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KHJ1584

UNION

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

16

154475A1

O-RING

1шт.

17

152747A1

ADAPTER

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

20

154475A1

O-RING

1шт.

21

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

22

154475A1

O-RING

1шт.

23

KHV0373

STUD

1шт.

25

KHV11360

HYDRAULIC HOSE

1шт.

26

KHJ18450

HYDRAULIC HOSE

1шт.

27

KHJ18450

HYDRAULIC HOSE

1шт.

28

150071A1

MOUNTING CLIP

4шт.

29

KSV11430

HYDRAULIC CYLINDER

Boom, Left Hand, See Figure 08-29

1шт.

30

155211A1

O-RING

1шт.

31

KSV17130

MANIFOLD VALVE

MANIFOLD, Replaces KSV11440

1шт.

32

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

33

155211A1

O-RING

1шт.

34

KSV17260

SAFETY VALVE

Replaces KRV11120, See Fig. 08-51

1шт.

35

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

36

KSV16210Y2

HYD TUBE

1шт.

37

155211A1

O-RING

1шт.

38

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

39

162659A1

PLUG

1шт.

40

154523A1

O-RING

1шт.

41

KSV11420

HYDRAULIC CYLINDER

Boom Cylinder, Right Hand, See Figure 08-28

1шт.

42

152211A1

O-RING

1шт.

43

KSV17130

MANIFOLD VALVE

MANIFOLD, Replaces KSV11440

1шт.

44

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

45

155211A1

O-RING

1шт.

46

KSV17260

SAFETY VALVE

Replaces KRV11120, See Figure 08-51

1шт.

47

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

48

KSV16200Y2

HYD TUBE

1шт.

49

155211A1

O-RING

1шт.

50

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

51

162659A1

PLUG

1шт.

52

154523A1

O-RING

1шт.
