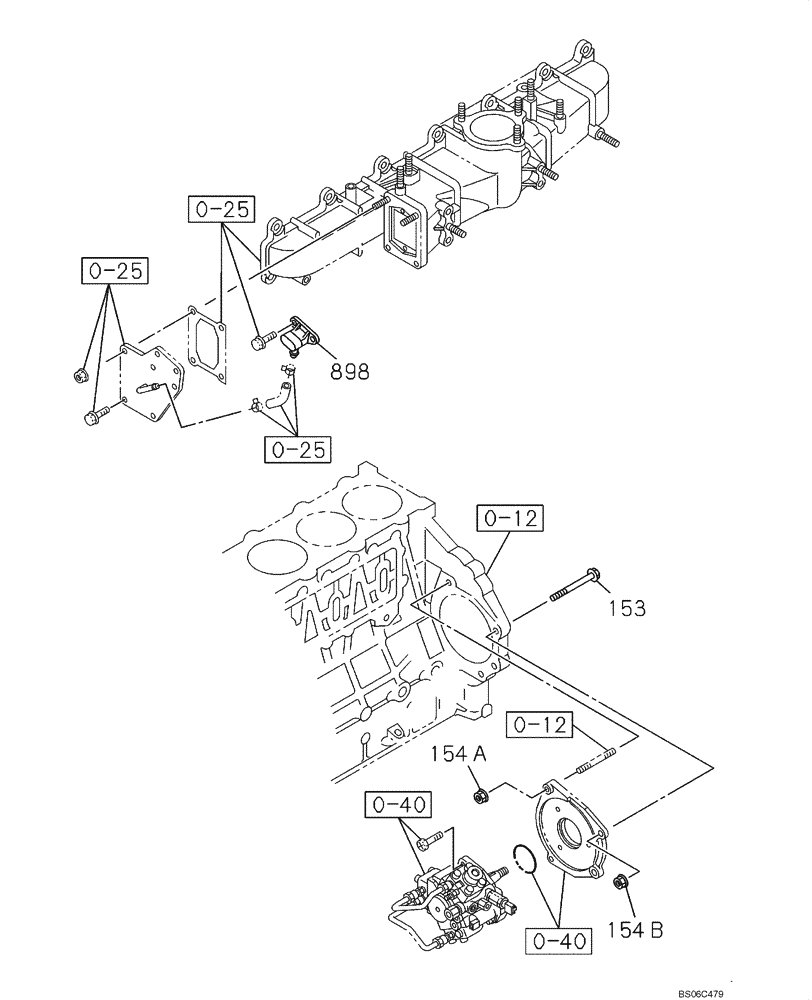

Запчасти Case CX350B (04-14) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

0-12

REF

INSTRUCTION

See Figure 02-11

1шт.

0-25

REF

INSTRUCTION

See Figure 02-18

1шт.

0-40

REF

INSTRUCTION

See Figure 03-03

1шт.

153

437853A1

BOLT

1шт.

154a

426067A1

FLANGE NUT

M10, Replaces 419929A1

2шт.

154b

289043A1

NUT

M12

1шт.

898

87379342

SENSOR

Boost Pressure

1шт.
