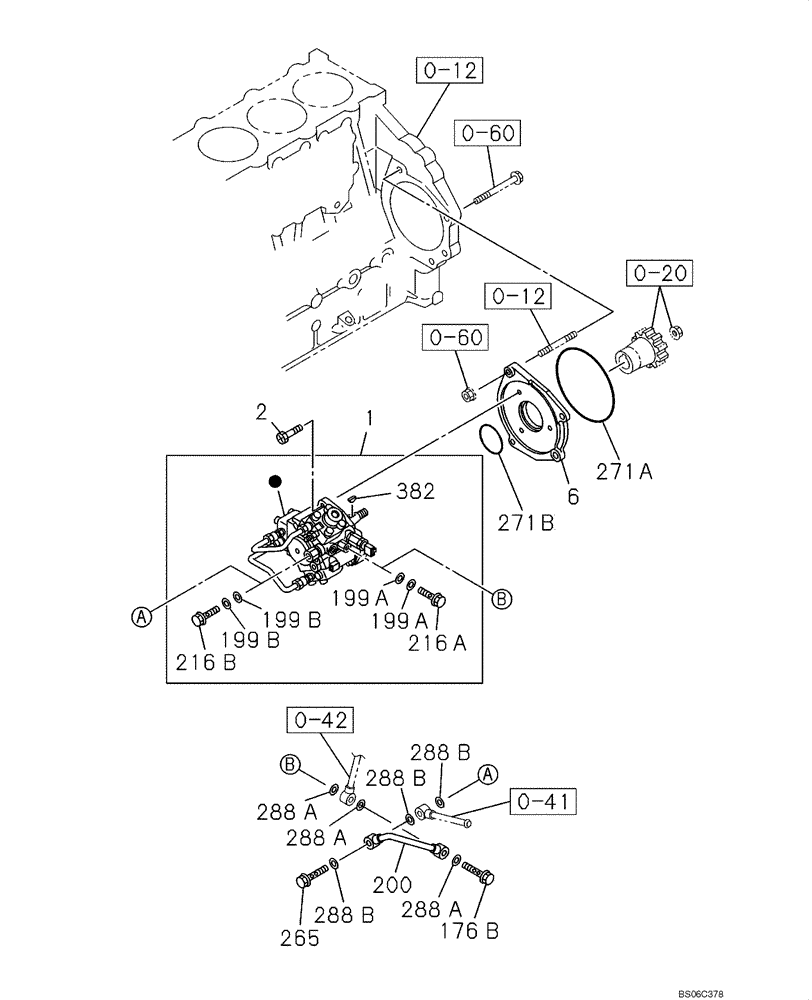

Запчасти Case CX350B (03-03) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

0-12

REF

INSTRUCTION

See Figure 02-11

1шт.

0-20

REF

INSTRUCTION

See Figure 02-15

1шт.

0-41

REF

INSTRUCTION

See Figure 03-05

1шт.

0-42

REF

INSTRUCTION

See Figure 03-06

1шт.

0-60

REF

INSTRUCTION

See Figure 04-14

1шт.

1

87722762

FUEL INJECTION PUMP

SUPPLY PUMP, Incl. 199A, 199B, 216A, 216B, 382

1шт.

84390958R

REMAN-INJECTION PUMP

CX350B TIER 3 (NA) (5/08-) Reman for new PN 87722762

1шт.

84390958C

CORE-INJECTION PUMP

Return number

1шт.

2

87379779

BOLT

3шт.

6

87378839

BRACKET

1шт.

176b

87379798

BOLT

2шт.

199a

87379800

GASKET

2шт.

199b

87379799

GASKET

2шт.

200

87378848

PIPE

1шт.

216a

87379803

BOLT

1шт.

216b

87379802

BOLT

1шт.

265

87378851

VALVE

1шт.

271a

437877A1

GASKET

1шт.

271b

87379804

GASKET

1шт.

288a

289092A1

GASKET

ID=10.2

3шт.

288b

426423A1

GASKET

ID=14.2

3шт.

382

87379021

WOODRUFF KEY

1шт.
