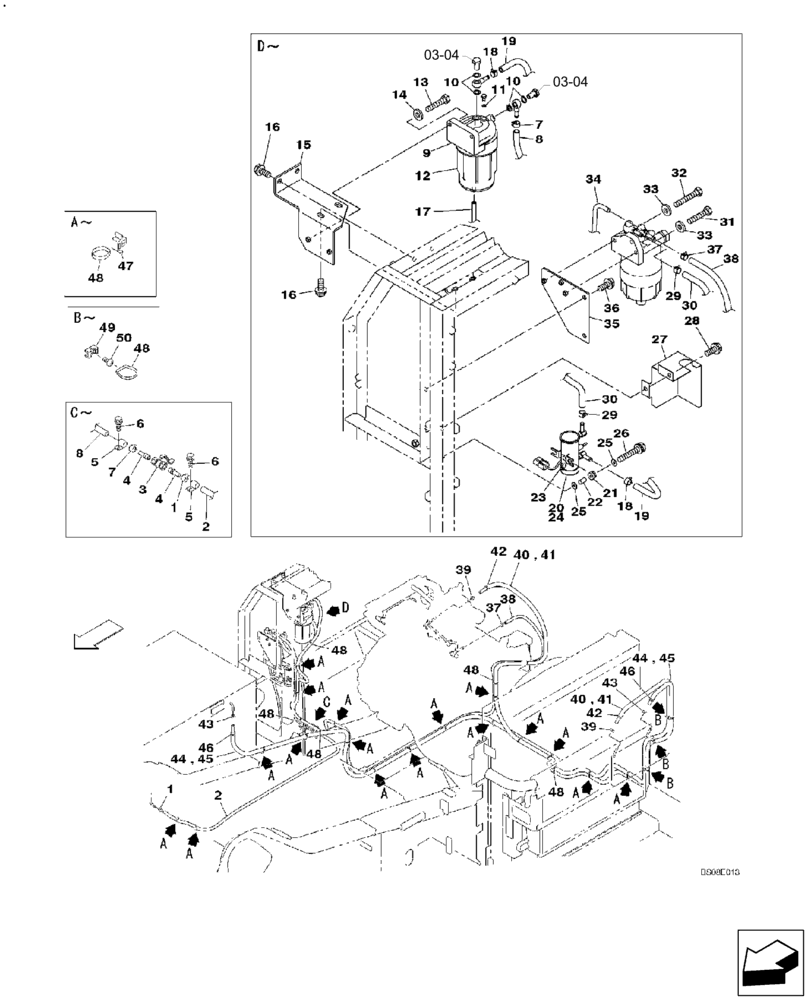

Запчасти Case CX350B (03-01) - FUEL SYSTEM (03) - FUEL SYSTEM

1

KHH0405

MOUNTING CLIP

2шт.

2

KHH12450

FUEL HOSE

1шт.

3

158923A1

DRAIN VALVE

1шт.

4

157929A1

FITTING

2шт.

5

162148A1

CLIP

2шт.

6

KHJ1215

BOLT,Spcl

M8X25

2шт.

7

KHH0405

MOUNTING CLIP

2шт.

8

KHH12430

FUEL HOSE

1шт.

9

KHH12020

FILTER ASSY

1шт.

10

158678A1

GASKET

4шт.

11

158676A1

GASKET

1шт.

12

KHH12030

FUEL FILTER

1шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

14

153081A1

WASHER

2шт.

15

KSH10310

SUPPORT

1шт.

16

166352A1

BOLT

M12X30

4шт.

17

KHH10290

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

1шт.

18

KHH0405

MOUNTING CLIP

2шт.

19

KHH12440

FUEL HOSE

1шт.

20

KHH11880

FEED PUMP

1шт.

21

KHH10470

GROMMET

2шт.

22

KHH10480

COLLAR

2шт.

23

KHH11890

FILTER SCREEN

1шт.

24

KHH11900

GASKET

1шт.

25

150529A1

WASHER

4шт.

26

162057A1

BOLT,Spcl, M6 x 35mm

M6X35

2шт.

27

KSH10110

COVER

M12X30

1шт.

28

166352A1

BOLT

2шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH10620

FUEL HOSE,300.00 mm

1шт.

31

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

32

102R008Y075R

BOLT

M8X75

1шт.

33

153081A1

WASHER

3шт.

34

KHH10290

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

800mm

1шт.

35

KSH1057

SUPPORT

1шт.

36

166052A1

BOLT

M10X25

2шт.

37

KHH0405

MOUNTING CLIP

2шт.

38

KHH12420

FUEL HOSE

1шт.

39

KHH0405

MOUNTING CLIP

2шт.

40

KHH12060

FUEL HOSE

1шт.

41

KHR13940

PLASTIC-RUBBER TUBE

19X3700

1шт.

42

150496A1

MOUNTING CLIP

250mm

2шт.

43

KHH0405

MOUNTING CLIP

2шт.

44

KHH12070

FUEL HOSE

1шт.

45

KHR1573

PLASTIC-RUBBER TUBE

19X5000

1шт.

46

150496A1

MOUNTING CLIP

250mm

2шт.

47

KHR10220

MOUNTING CLIP

17шт.

48

150496A1

MOUNTING CLIP

250mm

25шт.

49

150860A1

COLLAR

3шт.

50

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.
