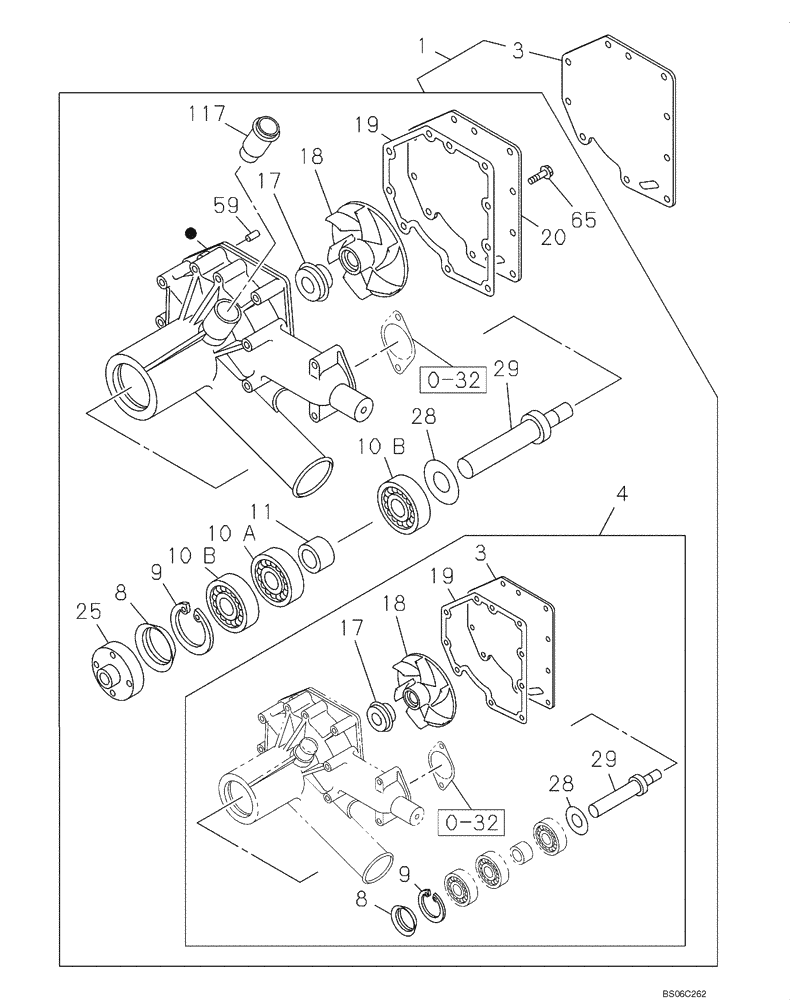

Запчасти Case CX350B (02-22) - WATER PUMP (02) - ENGINE

0-32

REF

INSTRUCTION

See Figure 02-25

1шт.

1

437924A1

PUMP, WATER

Incl. 3, 4, 8 - 11, 17 - 20, 28, 29, 59, 65, 117

1шт.

1

437924A1R

REMAN-WATER PUMP

CX350B CRAWLER EXCAVATOR TIER 3 (NA) (5/08-)

1шт.

1

437924A1C

CORE-WATER PUMP

Return Number

1шт.

3

437913A1

GASKET

1шт.

4

438019A1

KIT

Incl. 3, 8, 9, 17, 18, 19, 28, 29

1шт.

8

437919A1

RING

1шт.

9

438185A1

CIRCLIP

1шт.

10a

437889A1

BALL BEARING

1шт.

10b

437890A1

BALL BEARING

2шт.

11

437918A1

BALL BEARING

1шт.

17

426098A1

SEAL

1шт.

18

437916A1

IMPELLER

1шт.

19

437912A1

GASKET

1шт.

20

437913A1

GASKET

1шт.

25

437923A1

HUB

1шт.

28

437873A1

WASHER

1шт.

29

437917A1

SHAFT

1шт.

59

437891A1

DOWEL

2шт.

65

289759A1

SCREW

M8 x 20

2шт.

117

437883A1

TRANSMISSION SLEEVE

1шт.
