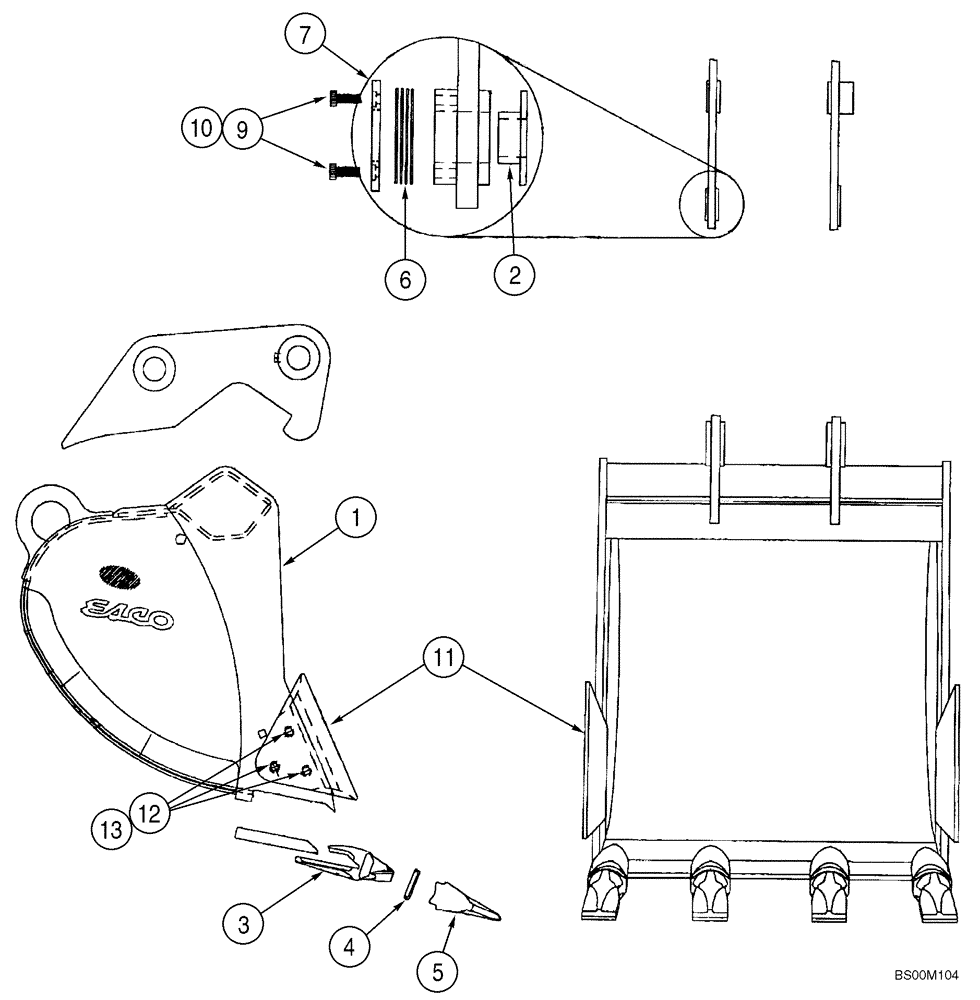

Запчасти Case CX350B (09-67) - BUCKETS, ESCO - SEVERE DUTY BUCKETS (09) - CHASSIS

1

442291A1

BUCKET

0.86 cu m (1.12 cu yd), With 4 Teeth

1шт.

1

442292A1

BUCKET

1.09 cu m (1.42 cu yd), With 4 Teeth

1шт.

1

442293A1

BUCKET

1.33 cu m (1.73 cu yd), With 5 Teeth

1шт.

1

442294A1

BUCKET

1.57 cu m (2.04 cu yd), With 5 Teeth

1шт.

2

443467A1

BUSHING

1шт.

3

254099A1

ADAPTER

Tooth

4 - 5шт.

4

254104A1

BUCKET TOOTH KEY

4 - 5шт.

5

254100A1

BUCKET TOOTH

4 - 5шт.

6

378635A1

SHIM

3шт.

7

378636A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

892-16016

LOCK WASHER,M16, Hvy

4шт.

10

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

4шт.

378662A1

KIT

Shroud; Incl. 11 - 13

1шт.

11

244962A1

BLADE

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

443468A1

KIT

Adjustment; Incl. 2, 6 - 10

1шт.
