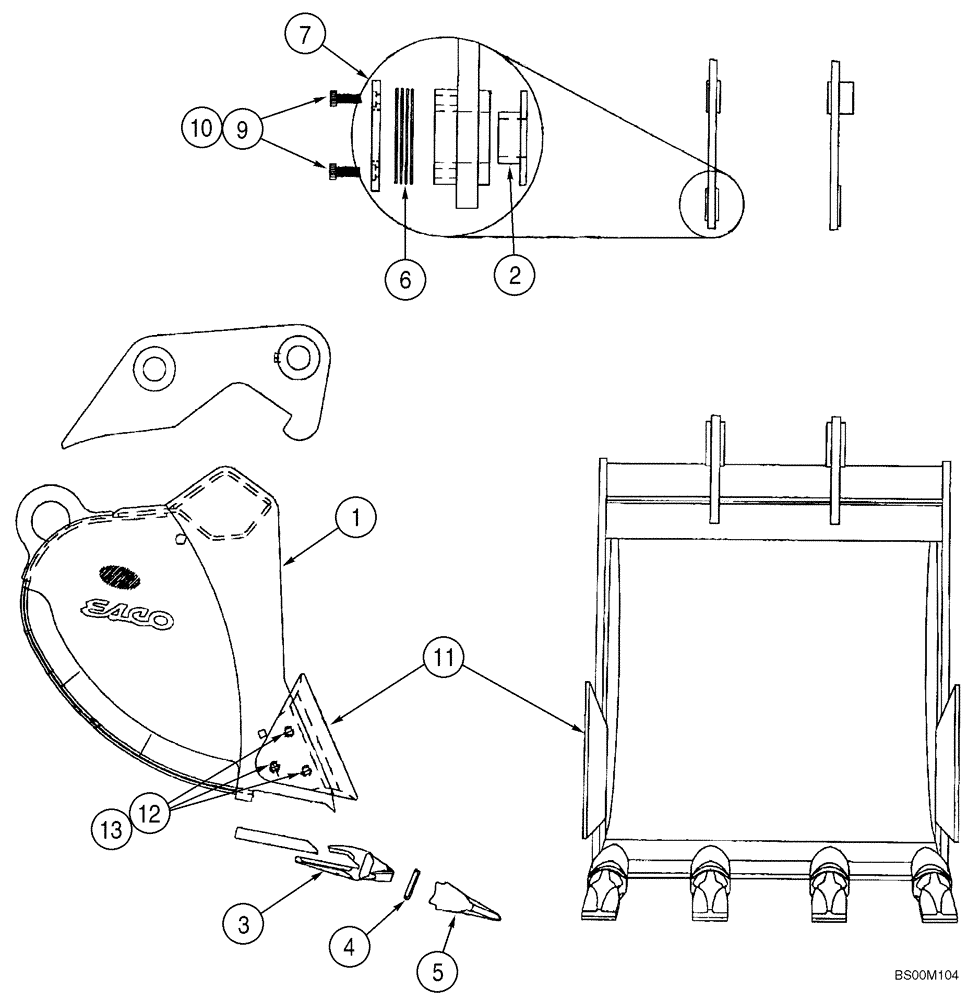

Запчасти Case CX350B (09-66) - BUCKETS, ESCO - HEAVY DUTY BUCKETS (09) - CHASSIS

1

442286A1

BUCKET

0.94 cu m (1.22 cu yd), With 4 Teeth

1шт.

1

442287A1

BUCKET

1.18 cu m (1.54 cu yd), With 4 Teeth

1шт.

1

442288A1

BUCKET

1.43 cu m (1.86 cu yd), With 5 Teeth

1шт.

1

442289A1

BUCKET

1.68 cu m (2.19 cu yd), With 5 Teeth

1шт.

1

442290A1

BUCKET

1.95 cu m (2.53 cu yd), With 6 Teeth

1шт.

2

443467A1

BUSHING

1шт.

3

254099A1

ADAPTER

Tooth

4-6шт.

4

254104A1

BUCKET TOOTH KEY

4-6шт.

5

254100A1

BUCKET TOOTH

4-6шт.

6

378635A1

SHIM

3шт.

7

378636A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

892-16016

LOCK WASHER,M16, Hvy

4шт.

10

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

4шт.

378662A1

KIT

Shroud, Incl. 11 - 13

1шт.

11

244962A1

BLADE

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

443468A1

KIT

Adjustment; Incl. 2, 6 - 10

1шт.
