/ / / / / / / / (09-42) - OPERATORS COMPARTMENT - CAB REAR PANELS

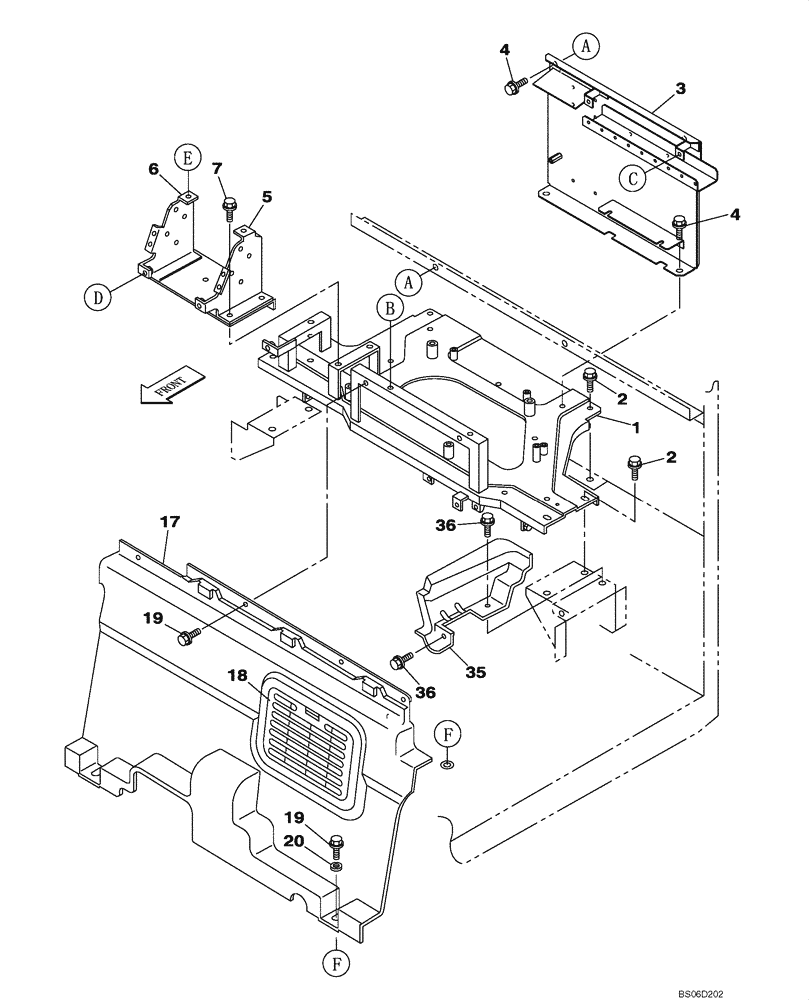

Запчасти Case CX350B (09-42) - OPERATORS COMPARTMENT - CAB REAR PANELS (09) - CHASSIS
6
5
7
2
36
20
2
17
36
3
19
35
4
19
1
18
4
1
KHN2227
BRACKET
1шт.
2
166350A1
BOLT
M8 x 20
6шт.
3
KHN3568
SUPPORT
1шт.
4
166350A1
BOLT
M8 x 20
4шт.
5
KHN2331
BRACKET
1шт.
6
KHN2330
BRACKET
1шт.
7
166350A1
BOLT
M8 x 20
3шт.
17
KHN3595
PADDING
1шт.
18
KHN3596
COVER
1шт.
19
KHN2309
BOLT,Spcl
M8 x 20
5шт.
20
KHN2312
WASHER
2шт.
35
KHN3599
PADDING
1шт.
36
KHN2132
BOLT,Hex Flg Hd, M6 x 16
M6 x 16
2шт.
