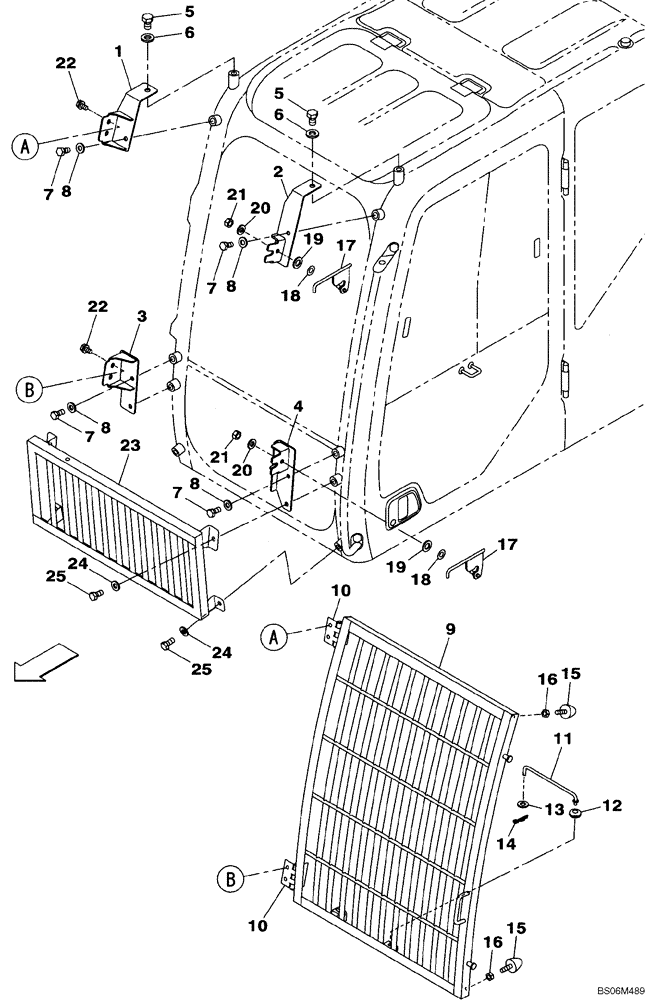

Запчасти Case CX350B (09-28) - GUARD, BRUSH - CAB FRONT GRILLE (09) - CHASSIS

1

KHN16931

BRACKET

1шт.

2

KHN19990

BRACKET

BRACKET, Replaces KHN16940

1шт.

3

KHN16950

BRACKET

1шт.

4

KHN16960

BRACKET

1шт.

5

102R016Y025R

BOLT

2шт.

6

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

8

150811A1

WASHER

4шт.

9

KHN19960

STONEGUARD

Incl. 10, GUARD, Replaces KHN16871

1шт.

10

KHN16890

HINGE

2шт.

11

KHN19980

STAY

STAY, Replaces KHN16910

1шт.

12

KHN16920

GROMMET

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

153181A1

COTTER PIN

1шт.

15

151108A1

STOP

2шт.

16

KBH0446

NUT

2шт.

17

KHN16970

LEVER

2шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

19

157560A1

WAVE WASHER

2шт.

20

150811A1

WASHER

2шт.

21

829-1412

NUT,M12, Cl 10.9

2шт.

22

166351A1

BOLT,Sems, M10 x 20mm

4шт.

23

KHN19970

STONEGUARD

GUARD, Replaces KHN16880

1шт.

24

150811A1

WASHER

4шт.

25

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

26

KHN20000

GROMMET

GROMMET, RUBBER, Not Shown

1шт.
