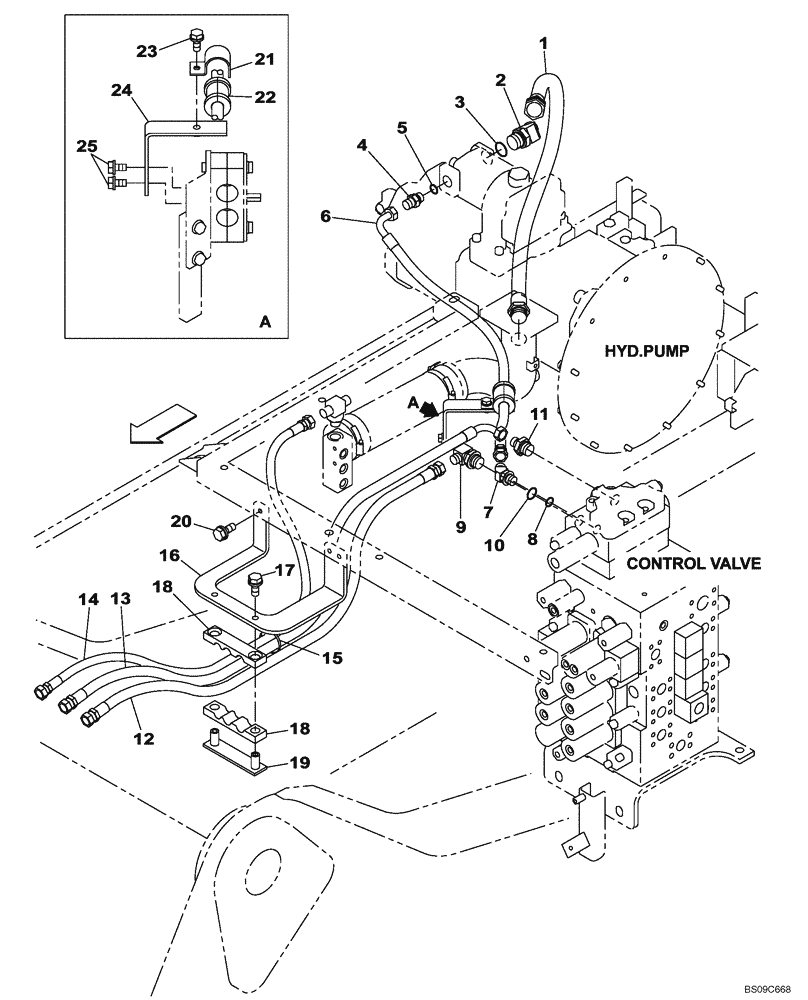

Запчасти Case CX350B (08-89) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

KTJ2249

HYDRAULIC HOSE,25.40 mm ID x 800.00 mm

1шт.

2

163636A1

ELBOW

Incl. 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 4

1шт.

5

154487A1

O-RING

1шт.

6

KSJ13560

HYDRAULIC HOSE,1300.00 mm

1шт.

7

157585A1

ELBOW

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

Incl. 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KSJ13530

HYDRAULIC HOSE,1660.00 mm

1шт.

13

KSJ13540

HYDRAULIC HOSE,1790.00 mm

1шт.

14

KSJ13550

HYDRAULIC HOSE,1810.00 mm

1шт.

15

150496A1

MOUNTING CLIP

250 mm

1шт.

16

KBJ12300

SUPPORT

Replaced by KSJ17790

1шт.

16

KSJ17790

SUPPORT

1шт.

17

166052A1

BOLT

M10 x 25

3шт.

18

KRJ11580

HOSE CLIP

2шт.

19

KRJ11590

SUPPORT

1шт.

20

166052A1

BOLT

M10 x 25

2шт.

21

KHJ2025

CLAMP

1шт.

22

KHJ2021

HOSE CLAMP

1шт.

23

166052A1

BOLT

M10 x 25

1шт.

24

KSJ13520

BRACKET

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.
