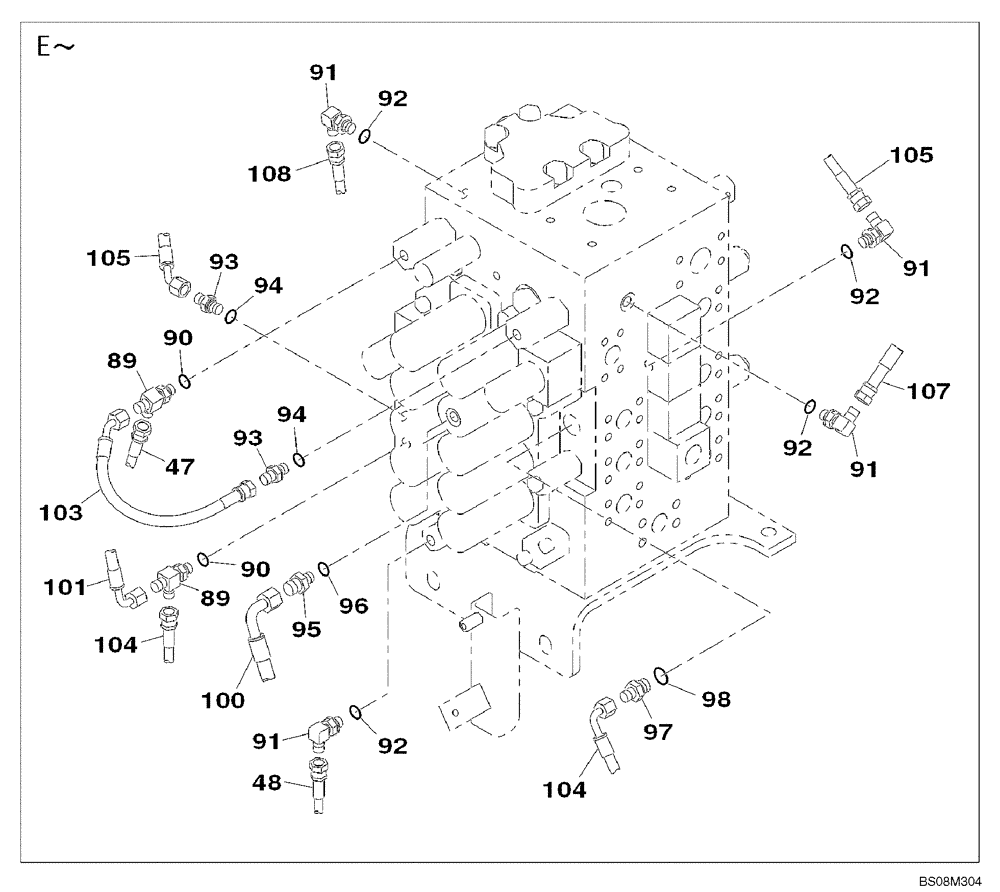

Запчасти Case CX350B (08-87) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

47

168065A1

HOSE

1шт.

48

166180A1

HYDRAULIC HOSE

1шт.

89

159497A1

TEE

Incl. 90

2шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 92

2шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

152747A1

ADAPTER

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

153378A1

ADAPTER

Incl. 98

1шт.

98

154475A1

O-RING

1шт.

100

KTJ1641

HOSE

1шт.

101

159044A1

HOSE ASSY.

1шт.

103

KHJ11180

HYDRAULIC HOSE,6.35 mm ID x 430.00 mm

6 x 350 mm

1шт.

104

KHJ2181

HOSE

6 x 580 mm

1шт.

105

KHJ2244

HOSE

6 x 600 mm

1шт.

107

KHJ2728

HYDRAULIC HOSE,6.30 mm ID x 2750.00 mm

1шт.

108

KHJ1233

HYDRAULIC HOSE,6.35 mm ID x 2150.00 mm

1шт.
