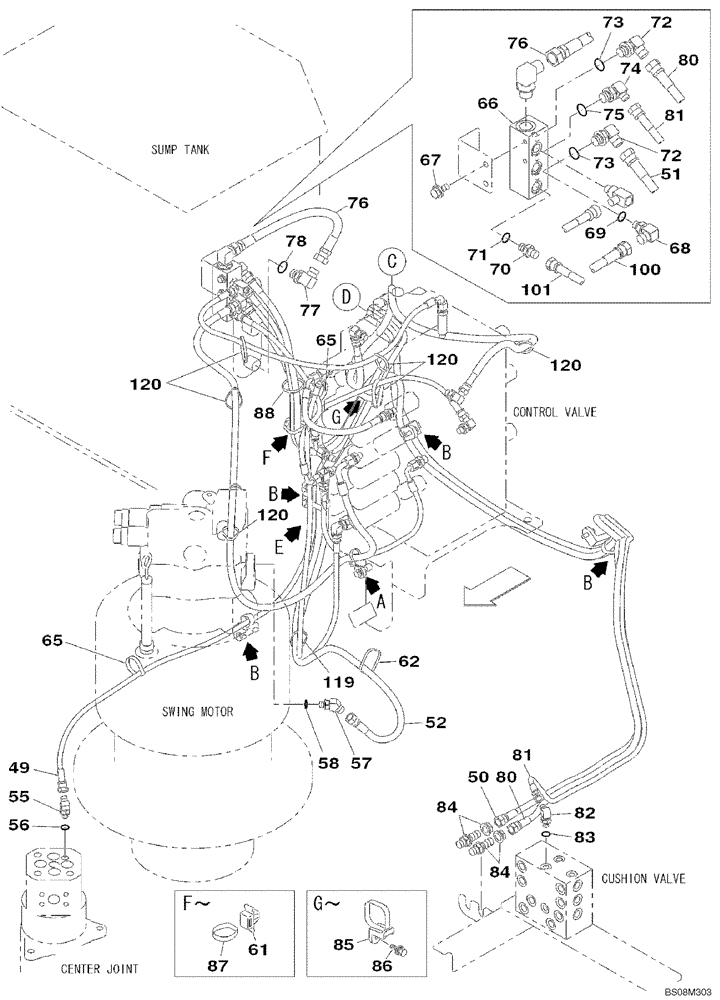

Запчасти Case CX350B (08-86) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

49

161077A1

HOSE ASSY.

1шт.

50

KRJ4970

HOSE

3800 mm

1шт.

51

KAJ2759

HYDRAULIC HOSE

6 x 2200 mm

1шт.

52

KMJ1894

HOSE

1шт.

55

150933A1

ELBOW

Incd. 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

161087A1

ELBOW

Incd. 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

KHR10220

MOUNTING CLIP

1шт.

62

150496A1

MOUNTING CLIP

5шт.

65

150071A1

MOUNTING CLIP

2шт.

66

KNJ2574

MANIFOLD

1шт.

67

166350A1

BOLT

2шт.

68

153559A1

ELBOW

Incd. 69

1шт.

69

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incd. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incd. 73

2шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

156554A1

ELBOW

Incd. 74

1шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

KHJ11140

HYDRAULIC HOSE,12.70 mm ID x 550.00 mm

1шт.

77

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incd. 78

1шт.

78

154487A1

O-RING

1шт.

80

KTJ1644

HOSE

6 x 3150 mm

1шт.

81

KHJ1766

HOSE

6 x 3200 mm

1шт.

82

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incd. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

162826A1

ADAPTER

2шт.

85

KHR2581

CLAMP

1шт.

86

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

87

150071A1

MOUNTING CLIP

1шт.

88

150498A1

MOUNTING CLIP

2шт.

100

KTJ1641

HOSE

1шт.

101

159044A1

HOSE ASSY.

1шт.

103

KHJ11180

HYDRAULIC HOSE,6.35 mm ID x 430.00 mm

1шт.

119

150496A1

MOUNTING CLIP

1шт.

120

150071A1

MOUNTING CLIP

7шт.
