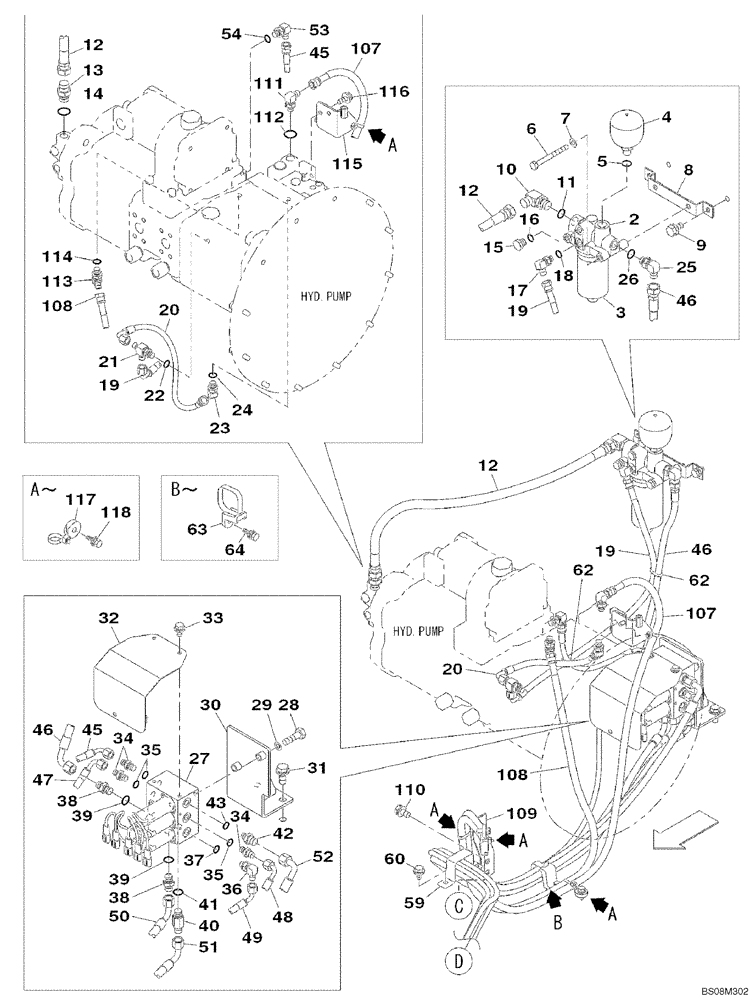

Запчасти Case CX350B (08-85) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

KHJ17710

FILTER ASSY

Incl. 2 - 5

1шт.

2

KHJ17720

FILTER HEAD

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

KHJ2359

ACCUMULATOR

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

KSJ12430

SUPPORT

1шт.

9

166052A1

BOLT

M10 x 25, Replaces 166351A1

2шт.

10

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 11

1шт.

11

154487A1

O-RING

1шт.

12

KHJ2326

HOSE

12 X 780 mm

1шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 14

1шт.

14

154487A1

O-RING

1шт.

15

159002A1

PLUG

Incl. 16

1шт.

16

154487A1

O-RING

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

KHJ2048

HOSE,6.3mm ID x 750mm L

6 X 800 mm

1шт.

20

KHJ2342

HOSE

6 X 380 mm

1шт.

21

159497A1

TEE

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150933A1

ELBOW

Incl. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 26

1шт.

26

154475A1

O-RING

1шт.

27

KHJ14520

SOLENOID VALVE

See Fig. 08-88

1шт.

28

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

29

150409A1

WASHER

2шт.

30

KSJ12420

BRACKET

1шт.

31

166352A1

BOLT

2шт.

32

KHJ16220

COVER

1шт.

33

166345A1

BOLT

2шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

3шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 39

2шт.

39

154475A1

O-RING

1шт.

40

159226A1

ADAPTER

Incl. 41

1шт.

41

154475A1

O-RING

1шт.

42

152747A1

ADAPTER

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

159355A1

HOSE ASSY.

1шт.

46

KHJ1383

HOSE

1шт.

47

168065A1

HOSE

1шт.

48

166180A1

HYDRAULIC HOSE

1шт.

49

161077A1

HOSE ASSY.

1шт.

50

KRJ4970

HOSE

3800 mm

1шт.

51

KAJ2759

HYDRAULIC HOSE

6 X 2200 mm

1шт.

52

KMJ1894

HOSE

1шт.

53

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

159032A1

CLAMP

1шт.

60

166350A1

BOLT

M8 x 20

2шт.

62

150496A1

MOUNTING CLIP

5шт.

63

KHR2581

CLAMP

6шт.

64

KHJ1215

BOLT,Spcl

6шт.

107

KHJ2728

HYDRAULIC HOSE,6.30 mm ID x 2750.00 mm

1шт.

108

KHJ1233

HYDRAULIC HOSE,6.35 mm ID x 2150.00 mm

1шт.

109

KSJ12790

BRACKET

1шт.

110

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

111

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

150933A1

ELBOW

Incl. 114

1шт.

114

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

KRJ16150

SUPPORT

1шт.

116

166350A1

BOLT

M8 x 20

2шт.

117

KHR2584

CLAMP

5шт.

118

KHJ1215

BOLT,Spcl

5шт.
