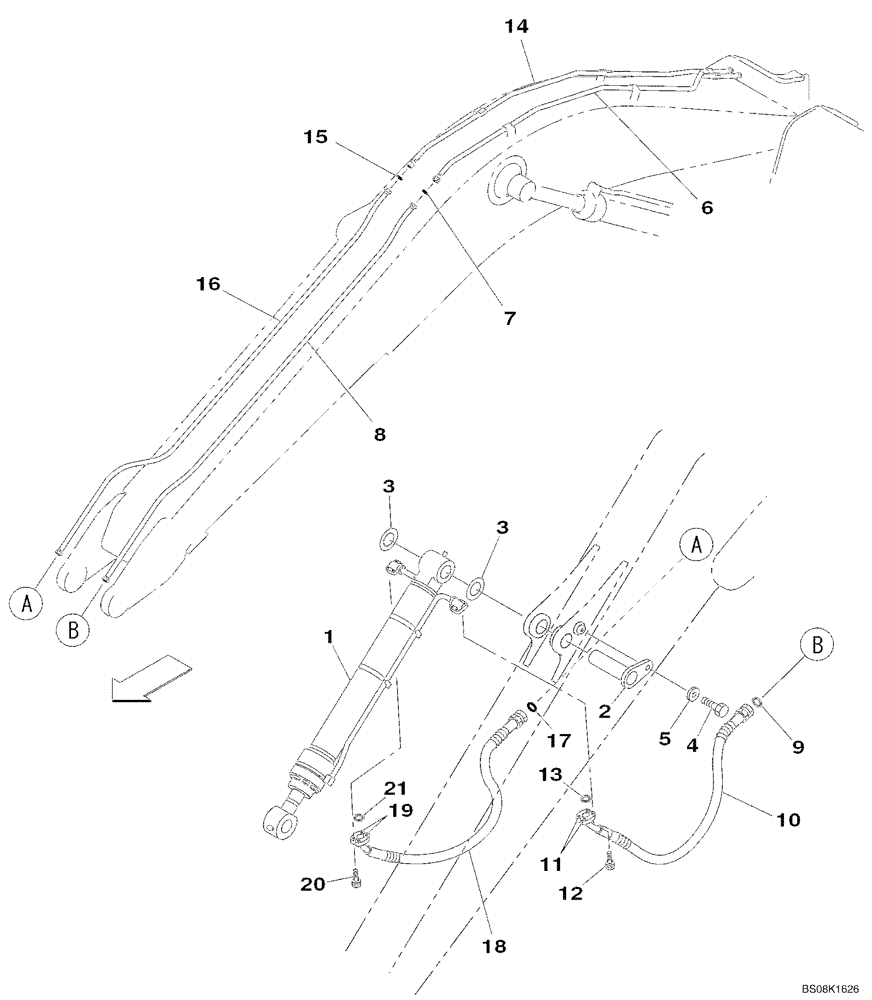

Запчасти Case CX350B (08-83) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - 4.04 M ARM (08) - HYDRAULICS

1

KSV1928

BUCKET CYLINDER

Se Fig. 08-84

1шт.

1

KSV18700R

REMAN-HYD CYLINDER

CX350B CRAWLER EXCAVATOR TIER 3 (NA), BUCKET CYLINDER - 4.04 M ARM (5/08-), Reman for New PN KSV1928

1шт.

1

KSV18700C

CORE-HYD CYLINDER

Return Number

1шт.

2

KSV1522

PIN

1шт.

3

KSP0828

SHIM,1.2mm Thk

2шт.

4

102R020Y035R

BOLT

M20 x 35

1шт.

5

KTV1185

SPACER

1шт.

6

KSV17650Y2

HYD TUBE

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KSV17670Y2

HYD TUBE

1шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

10

KSV1516

HYDRAULIC HOSE,25.40 mm ID x 2250.00 mm

2350 mm

1шт.

11

153459A1

FLANGE

2шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

13

155211A1

O-RING

1шт.

14

KSV17660Y2

HYD TUBE

1шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

KSV17680Y2

HYD TUBE

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

18

KSV1516

HYDRAULIC HOSE,25.40 mm ID x 2250.00 mm

2350 mm

1шт.

19

153459A1

FLANGE

1шт.

20

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

21

155211A1

O-RING

1шт.
