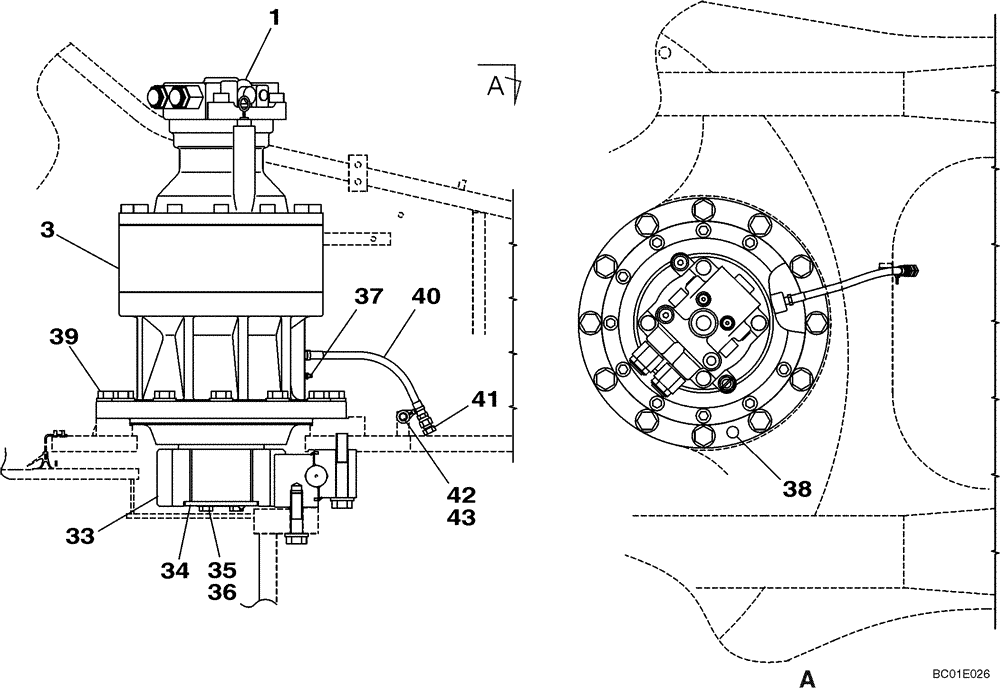

Запчасти Case CX350B (08-53) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

1

KSC10070

HYDRAULIC MOTOR

Swing; See Figure 08-54

1шт.

1

KSC10070R

REMAN-HYD MOTOR

1шт.

1

KSC10070C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

KSC10080

REDUCER

Transmission; See Figure 08-55

1шт.

3

KSC10240R

REMAN-REDUCTION UNIT

CX350B CRAWLER EXCAVATOR TIER 3 (NA), Transmission (5/08-), Reman for New PN KSC10080

1шт.

3

KSC10240C

CORE-REDUCTION UNIT

Return Number

1шт.

800-1145

SNAP RING,M45, Ext

Not Shown

1шт.

33

KSC0201

GEAR

Pinion

1шт.

34

150285A1

PLATE, LOCKING

1шт.

35

167069A1

WASHER

1шт.

36

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

37

153630A1

LUBE NIPPLE

Grease

1шт.

38

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

39

166477A1

BOLT,Sems, M24 x 90mm

12шт.

40

KTJ0315

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

41

KHP0501

PLUG

1шт.

42

KHR2584

CLAMP

1шт.

43

KHJ1215

BOLT,Spcl

1шт.
