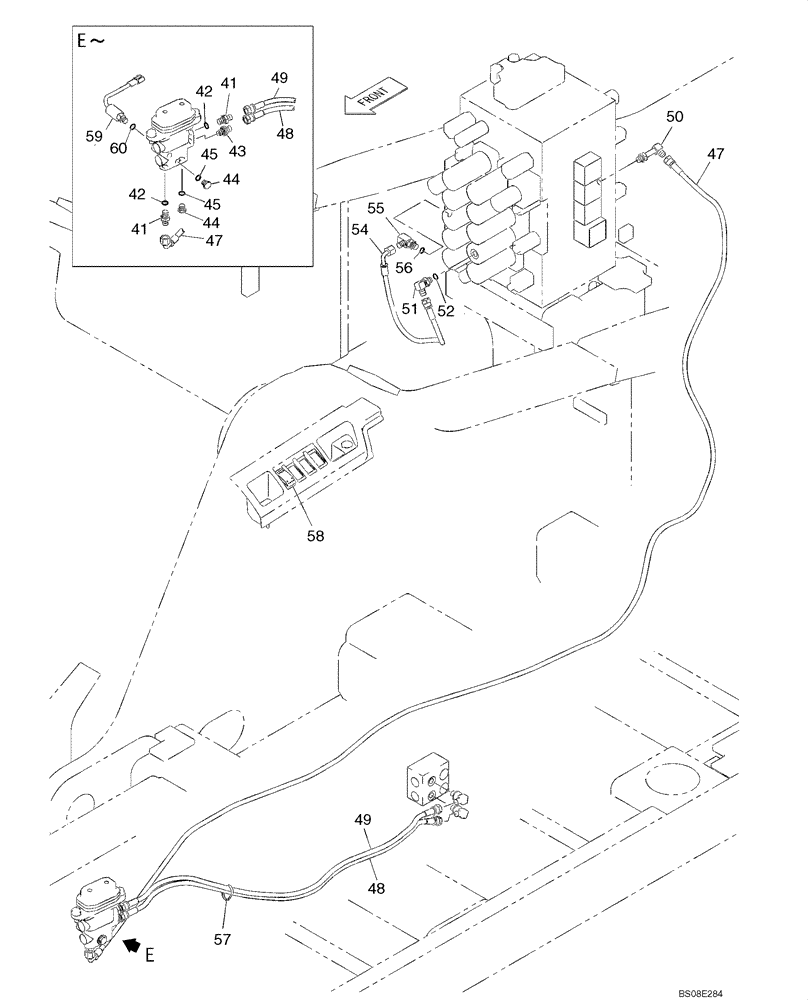

Запчасти Case CX350B (08-44) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 42

2шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

161841A1

HYD CONNECTOR

1шт.

44

159002A1

PLUG

Incl 45

2шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

KHJ12230

HYDRAULIC HOSE

3350mm

1шт.

48

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

49

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

50

KHJ1178

ELBOW

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

KHJ2309

HOSE

6X550

1шт.

55

KHJ2773

TEE

Incl 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

150496A1

MOUNTING CLIP

1шт.

58

KHR14060

SWITCH,Breaker

1шт.

59

KHR10820

PRESSURE SWITCH

Incl 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
