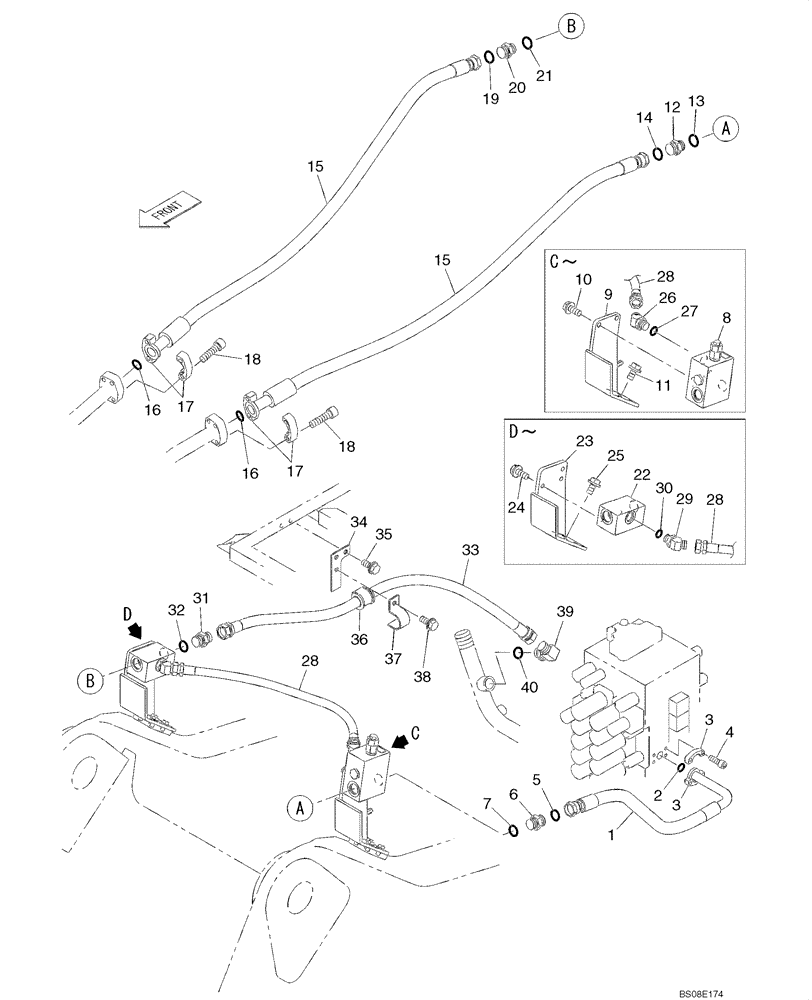

Запчасти Case CX350B (08-43) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

1

KSJ13070

HYDRAULIC HOSE,1080.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

Incl 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ15050

VALVE PRESSURE RELIE

See Fig. 08-57

1шт.

9

KSJ12870

SUPPORT

1шт.

10

166352A1

BOLT

M12X30

2шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

12

KHJ1349

ADAPTER

1шт.

13

154523A1

O-RING

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

15

KSJ13060

HYDRAULIC HOSE

25X1650

2шт.

16

164450A1

O-RING

2шт.

17

150124A1

FLANGE

4шт.

18

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14X50

8шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

20

KHJ1349

ADAPTER

Incl 21

1шт.

21

154523A1

O-RING

1шт.

22

KRJ16400

MANIFOLD VALVE

1шт.

23

KSJ12880

SUPPORT

1шт.

24

166352A1

BOLT

M12X30

2шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

26

157586A1

ELBOW

Incl 27

1шт.

27

154503A1

O-RING

1шт.

28

KSJ13100

HYDRAULIC HOSE,910.00 mm

1шт.

29

157586A1

ELBOW

Incl 30

1шт.

30

154503A1

O-RING

1шт.

31

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl 32

1шт.

32

154523A1

O-RING

1шт.

33

KSJ13110

HYDRAULIC HOSE,25.00 mm ID x 1290.00 mm

1шт.

34

KRJ16280

SUPPORT

1шт.

35

166352A1

BOLT

M12X30

2шт.

36

KHJ2680

COLLAR CLAMP

1шт.

37

KBJ11860

SUPPORT

1шт.

38

166352A1

BOLT

M12X30

1шт.

39

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl 40

1шт.

40

154523A1

O-RING

1шт.
