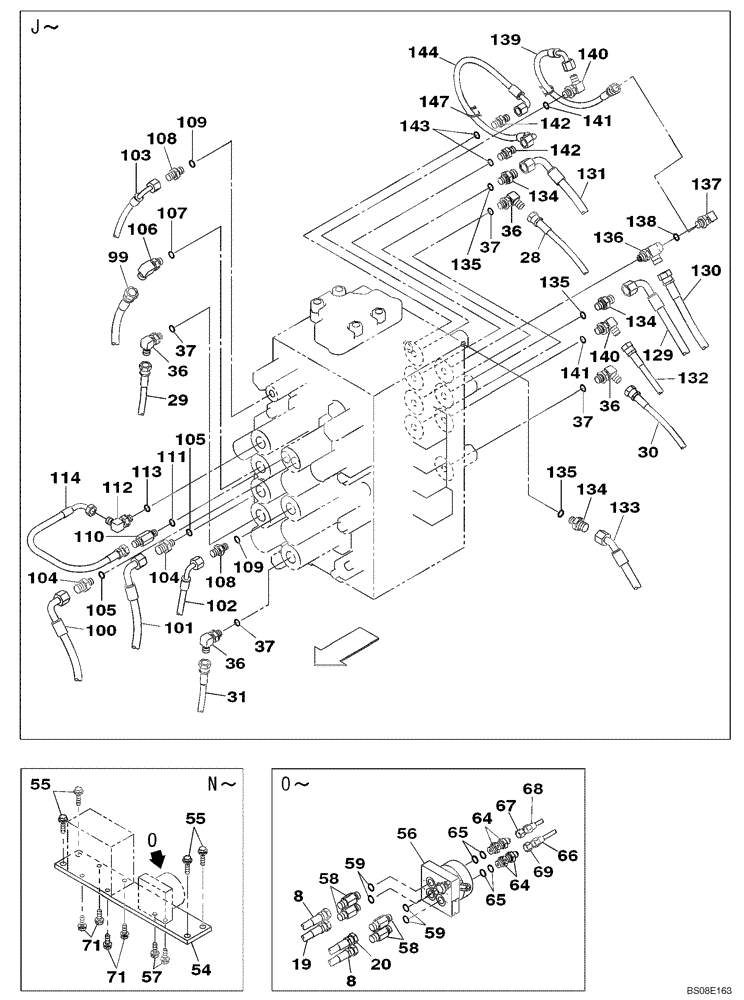

Запчасти Case CX350B (08-42) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS

8

159211A1

HYDRAULIC HOSE

6X2000

4шт.

19

159217A1

HYDRAULIC HOSE

1850mm

2шт.

20

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

28

KHJ15170

HYDRAULIC HOSE

6X3500

1шт.

29

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

30

KHJ19000

HOSE

6X3450

1шт.

31

KHJ18110

HOSE

6X3950

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 37

4шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

KHJ13750

SUPPORT

1шт.

55

166352A1

BOLT

M12X30

4шт.

56

KHJ12080

CONTROL BLOCK

See Fig 08-27

1шт.

57

166052A1

BOLT

M10X25

2шт.

58

159226A1

ADAPTER

Incl 59

4шт.

59

154475A1

O-RING

1шт.

64

KHJ1821

NIPPLE, LUBE

NIPPLE Incl 65

4шт.

65

154475A1

O-RING

1шт.

66

KHJ15390

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

67

KHJ15400

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

68

KHJ15410

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

69

KHJ15420

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

71

166052A1

BOLT

M10X25

4шт.

99

152767A1

HOSE ASSY.

6X2350

1шт.

101

KAJ2189

HYDRAULIC HOSE

6X22

1шт.

102

159009A1

HOSE ASSY.

4X2350

1шт.

103

KHJ18980

HOSE

6X2500

1шт.

104

152747A1

ADAPTER

Incl 105

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

153559A1

ELBOW

Incl 107

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 109

2шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

162554A1

FITTING

Incl 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

112

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 113

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

KHJ1387

HYDRAULIC HOSE,6.35 mm ID x 320.00 mm

1шт.

129

159074A1

HOSE

6X17

1шт.

130

KMJ1989

HOSE

6X1750

1шт.

131

KHJ12620

HYDRAULIC HOSE

1шт.

132

163258A1

HOSE,6.4mm ID x 1750mm L

1шт.

133

153550A1

HOSE

6X18

1шт.

134

152747A1

ADAPTER

Incl 135

3шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

KHJ11560

TEE

1шт.

137

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 138

1шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

KHJ2084

HOSE

1шт.

140

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 141

1шт.

141

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

142

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 143

2шт.

143

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

144

KHJ2350

HOSE

6X520

1шт.

147

150496A1

MOUNTING CLIP

1шт.
