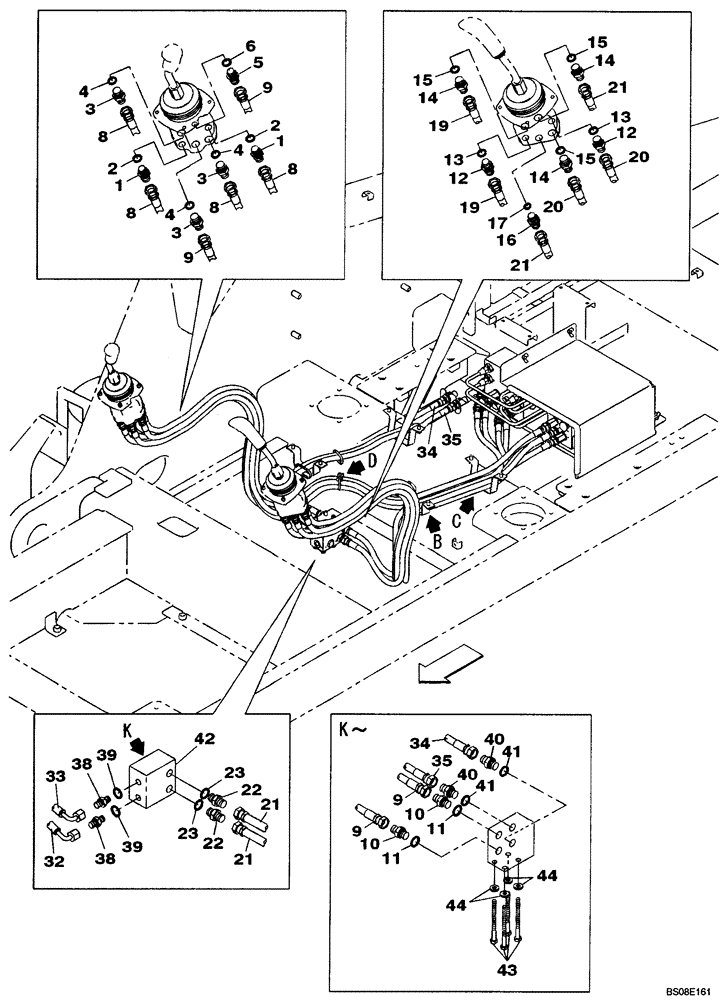

Запчасти Case CX350B (08-40) - PILOT CONTROL LINES, ATTACHMENT - TWO WAY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
KHJ1402
ADAPTER
Incl 2
2шт.
2
154475A1
O-RING
1шт.
3
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl 4
3шт.
4
154475A1
O-RING
1шт.
5
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl 6
1шт.
6
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
8
159211A1
HYDRAULIC HOSE
6X2000
4шт.
9
159213A1
HYDRAULIC HOSE
1150mm
2шт.
10
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl 11
2шт.
11
154475A1
O-RING
1шт.
12
KHJ1402
ADAPTER
Incl 13
2шт.
13
154475A1
O-RING
1шт.
14
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl 15
3шт.
15
154475A1
O-RING
1шт.
16
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
19
159217A1
HYDRAULIC HOSE
1850mm
2шт.
20
KRJ4381
HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm
2шт.
21
159213A1
HYDRAULIC HOSE
1150mm
2шт.
22
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl 23
2шт.
23
154475A1
O-RING
1шт.
32
KHJ2249
HOSE
6X950
1шт.
33
KHJ2249
HOSE
6X950
1шт.
34
KHJ11520
HYDRAULIC HOSE,9.52 mm ID x 900.00 mm
1шт.
35
KHJ11520
HYDRAULIC HOSE,9.52 mm ID x 900.00 mm
1шт.
38
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 39
2шт.
39
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
40
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl 41
2шт.
41
154475A1
O-RING
1шт.
42
KRJ5903
MANIFOLD
1шт.
43
828-8100
BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9
4шт.
44
153081A1
WASHER
4шт.
Выбрано товаров: 32
