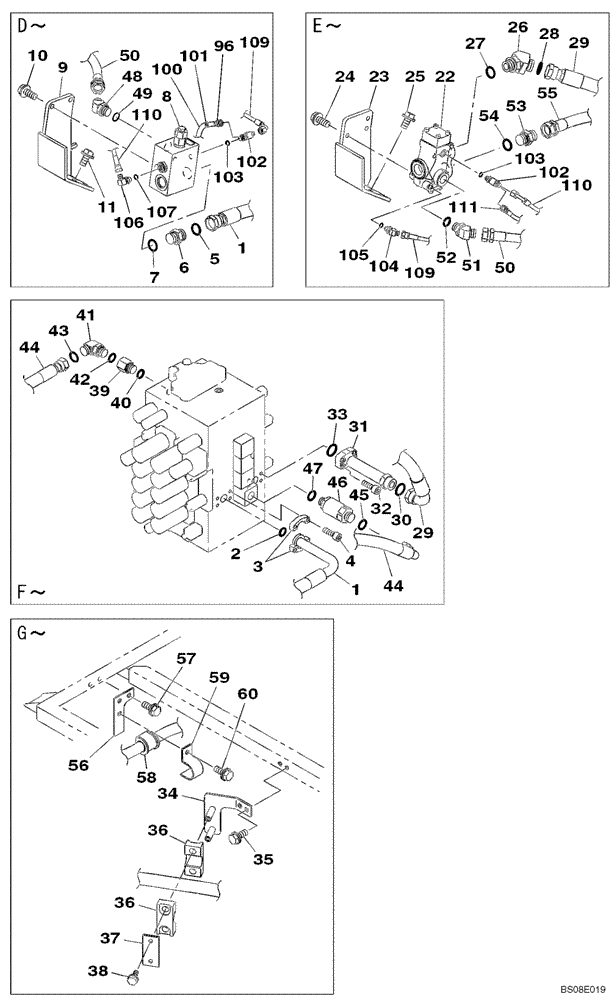

Запчасти Case CX350B (08-34) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, PEDAL ACTIVATED (08) - HYDRAULICS

1

KSJ13070

HYDRAULIC HOSE,1080.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ10410

VALVE SECTION

See Figure 08-60

1шт.

9

KSJ12870

SUPPORT

1шт.

10

166352A1

BOLT

2шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

22

KHJ10420

VALVE SECTION

See Figure 08-59

1шт.

23

KSJ12880

SUPPORT

1шт.

24

166352A1

BOLT

2шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

26

KHJ11370

ELBOW

Incl. 27

1шт.

27

154523A1

O-RING

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KSJ13080

HYDRAULIC HOSE,25.00 mm ID x 1550.00 mm

1шт.

30

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

31

KBJ11870

HYD TUBE,26 mm ID x 34 mm OD

1шт.

32

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

33

155211A1

O-RING

1шт.

34

KBJ11840

BRACKET

1шт.

35

166352A1

BOLT

2шт.

36

KRJ11450

HOSE CLIP

2шт.

37

KRJ10800

PLATE

1шт.

38

166052A1

BOLT

2шт.

39

159198A1

ADAPTER

Incl. 40

1шт.

40

154503A1

O-RING

1шт.

41

KHJ1804

ELBOW

Incl. 42

1шт.

42

154503A1

O-RING

1шт.

43

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

44

KSJ13090

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

45

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

46

KHJ10480

VALVE SECTION

Incl. 47

1шт.

47

154503A1

O-RING

1шт.

48

157586A1

ELBOW

Incl. 49

1шт.

49

154503A1

O-RING

1шт.

50

KSJ13100

HYDRAULIC HOSE,910.00 mm

1шт.

51

157586A1

ELBOW

Incl. 52

1шт.

52

154503A1

O-RING

1шт.

53

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 54

1шт.

54

154523A1

O-RING

1шт.

55

KSJ13110

HYDRAULIC HOSE,25.00 mm ID x 1290.00 mm

1шт.

56

KRJ16280

SUPPORT

1шт.

57

166352A1

BOLT

2шт.

58

KHJ2680

COLLAR CLAMP

1шт.

59

KBJ11860

SUPPORT

1шт.

60

166352A1

BOLT

1шт.

96

KHJ18680

HOSE

6x4600

1шт.

100

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1шт.

101

150067A1

MOUNTING CLIP

2шт.

102

159497A1

TEE

Incl. 103

2шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

150933A1

ELBOW

Incl. 105

1шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 10

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

KHJ2090

HOSE

6x1000

1шт.

110

KHJ2146

HOSE

6x1200

1шт.

111

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.
