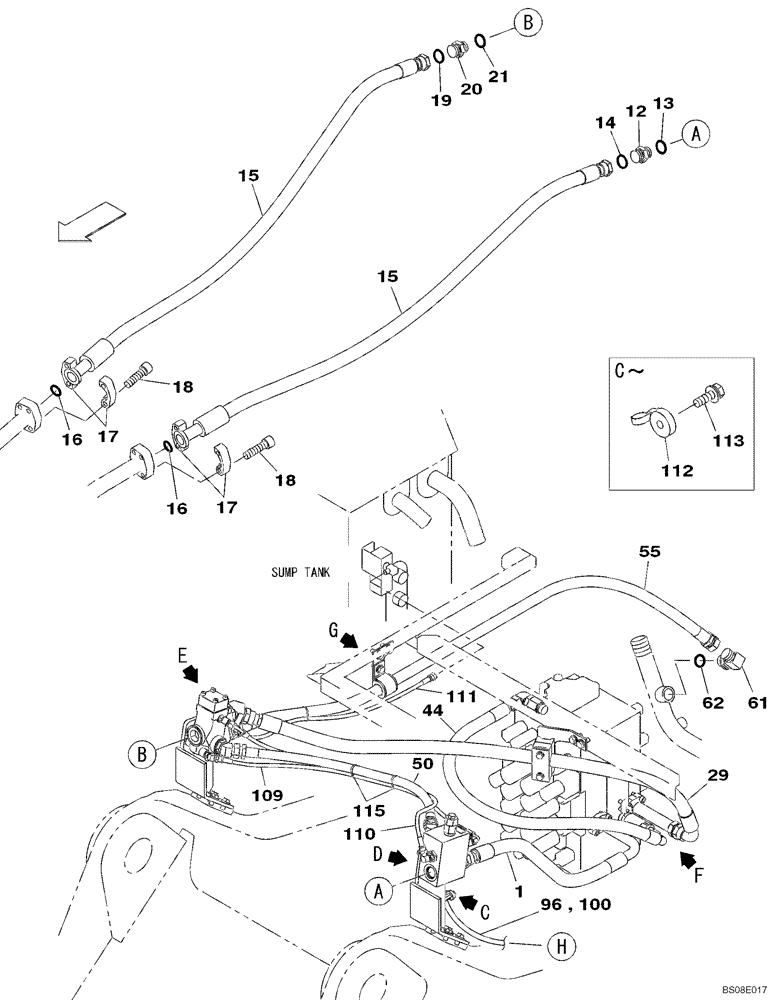

Запчасти Case CX350B (08-32) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, PEDAL ACTIVATED (08) - HYDRAULICS

1

KSJ13070

HYDRAULIC HOSE,1080.00 mm

1шт.

12

KHJ1349

ADAPTER

Incl. 13

1шт.

13

154523A1

O-RING

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

15

KSJ13060

HYDRAULIC HOSE

25x1650

2шт.

16

164450A1

O-RING

2шт.

17

150124A1

FLANGE

4шт.

18

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

20

KHJ1349

ADAPTER

Incl. 21

1шт.

21

154523A1

O-RING

1шт.

29

KSJ13080

HYDRAULIC HOSE,25.00 mm ID x 1550.00 mm

1шт.

44

KSJ13090

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

50

KSJ13100

HYDRAULIC HOSE,910.00 mm

1шт.

55

KSJ13110

HYDRAULIC HOSE,25.00 mm ID x 1290.00 mm

1шт.

61

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 62

1шт.

62

154523A1

O-RING

1шт.

96

KHJ18680

HOSE

6x4600

1шт.

100

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1шт.

109

KHJ2090

HOSE

6x1000

1шт.

110

KHJ2146

HOSE

6x1200

1шт.

111

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

112

KHR2584

CLAMP

1шт.

113

KHJ1215

BOLT,Spcl

1шт.
