Запчасти Case CX350B (00-05) - FILTERS AND CAPACITIES (00) - PICTORIAL INDEX

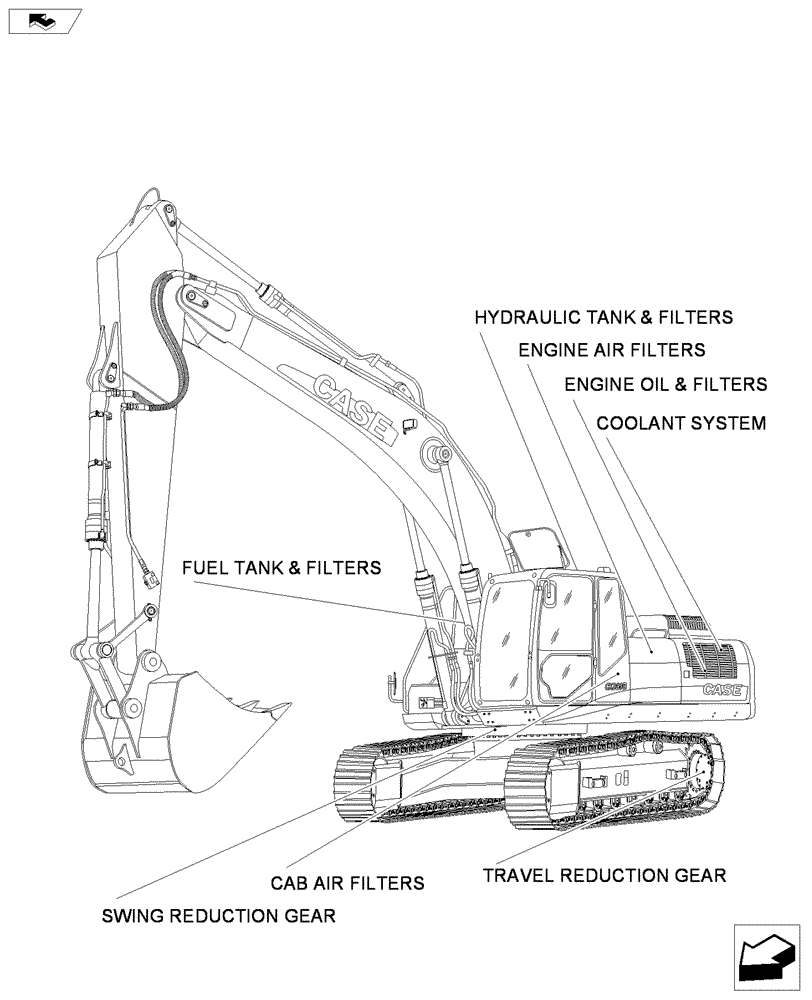

Схема запчастей Case CX350B - (00-05) - FILTERS AND CAPACITIES (00) - PICTORIAL INDEX

Артикул

Название

Примечание

Количество

Coolant System Capacity, 30.02 Liters (7.93 US Gallons)

1шт.

Coolant Type, CNH XHD Coolant-Antifreeze

1шт.

87327673

ENGINE OIL FILTER

ENGINE OIL

1шт.

Engine Oil Capacity with Filter, 37.97 Liters (10.03 US Gallons)

1шт.

Engine Oil Type, CASE No. 1 SAE 15W40

1шт.

87682984

AIR FILTER

ENGINE AIR, Outer

1шт.

87682985

AIR FILTER

ENGINE AIR, Inner

1шт.

KHR13330

CAB FILTER

CAB AIR, A/C Evaporator

1шт.

KHR13340

CAB FILTER

CAB AIR, A/C Ducts

1шт.

159702A1

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Hydraulic Reservoir

1шт.

163663A1

FILTER

HYDRAULIC OIL, High Pressure Pump, Pilot Control

1шт.

KHJ10790

FILTER SCREEN

HYDRAULIC OIL, Valve, Pilot Control Lines

1шт.

KHJ17730

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Optional, Hydraulics, Pilot Pressure, Rerun Lines

1шт.

KRJ20710

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Hydraulic Reservoir

1шт.

KSJ2675

HYDRAULIC OIL FILTER

HYDRAULIC OIL, Hydraulic Reservoir

1шт.

Hydraulic Oil Capacity Entire System, 349.77 Liters (92.4 US Gallons)

1шт.

Hydraulic Oil Type, CASE Akcela Hy-Tran Ultra

1шт.

87365565

FUEL FILTER

FUEL, Includes gasket 87379063 & Plug 87379078

1шт.

KHH10060

FILTER

FUEL, Tank

1шт.

KHH12030

FUEL FILTER

FUEL, Fuel, Pre-Filter

1шт.

Fuel Tank Capacity, 580 Liters (153.2 US Gallons), No.2 Diesel

1шт.

Swing Reduction Gear Oil Capacity (Each), 7.95 Liters (8.4 US Quarts)

1шт.

Swing Reduction Gear Oil Type, CASE Akcela 135H EP Gear Lube 85W140

1шт.

Travel Reduction Gear Oil Capacity (Each), 9.46 Liters (10 US Quarts)

1шт.

Travel Reduction Gear Oil Type, 135H EP Gear Lube 85W140

1шт.

Выбрано товаров: 25
