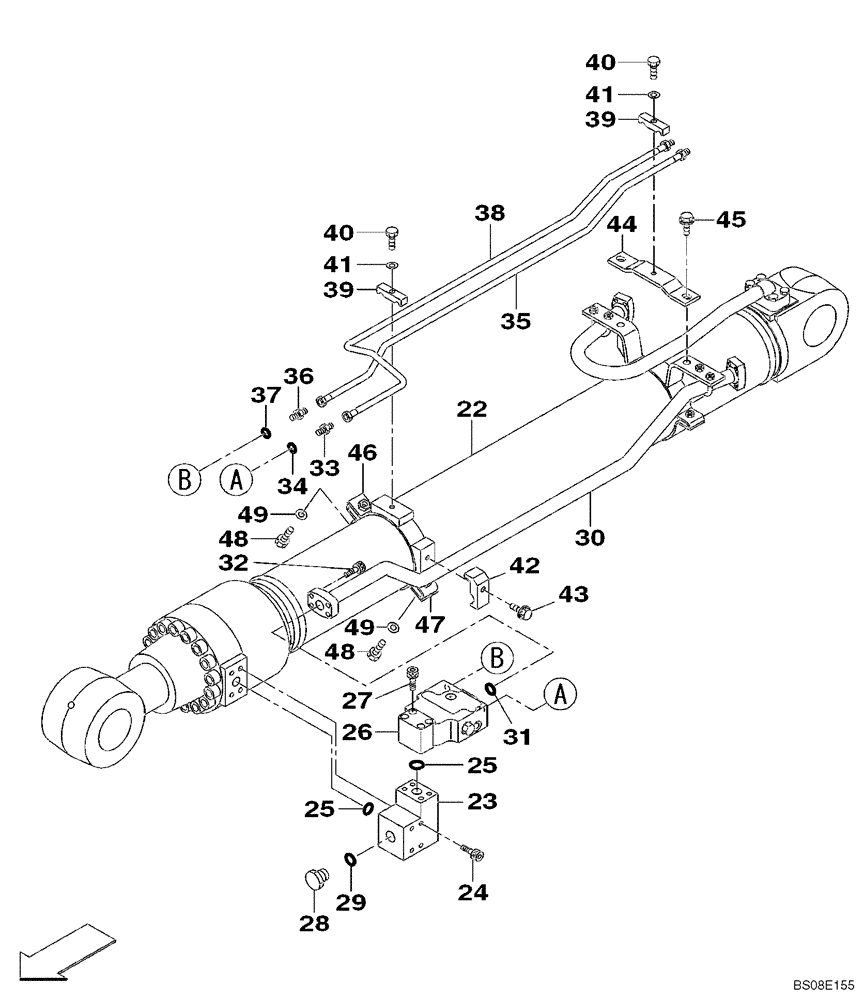

Запчасти Case CX350B (08-24) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

22

KSV11460

HYDRAULIC CYLINDER

Arm, Incl. 40; See Figure 08-25

1шт.

23

KSV16190

MANIFOLD VALVE

1шт.

24

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

25

155211A1

O-RING

2шт.

26

KSV17260

SAFETY VALVE

Replaces KRV11120, See Figure 08-51

1шт.

27

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

28

162659A1

PLUG

1шт.

29

154523A1

O-RING

1шт.

30

KSV16050Y2

HYD TUBE

1шт.

31

155211A1

O-RING

1шт.

32

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

33

KRJ1231

ADAPTER

1шт.

34

154475A1

O-RING

1шт.

35

KSV16030Y2

HYD TUBE

1шт.

36

KHJ1285

ADAPTER

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

KSV16040Y2

HYD TUBE

1шт.

39

KAV1443

PIPE CLAMP

2шт.

40

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

41

150811A1

WASHER

2шт.

42

153731A1

SPECIAL CLAMP

1шт.

43

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12X60

1шт.

44

KSV16080

PLATE

1шт.

45

166373A1

BOLT,Sems, M16 x 40mm

M16Z40

2шт.

46

KSV16060

CLAMP

1шт.

47

KSV11580

COLLAR

1шт.

48

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

49

150409A1

WASHER

2шт.
