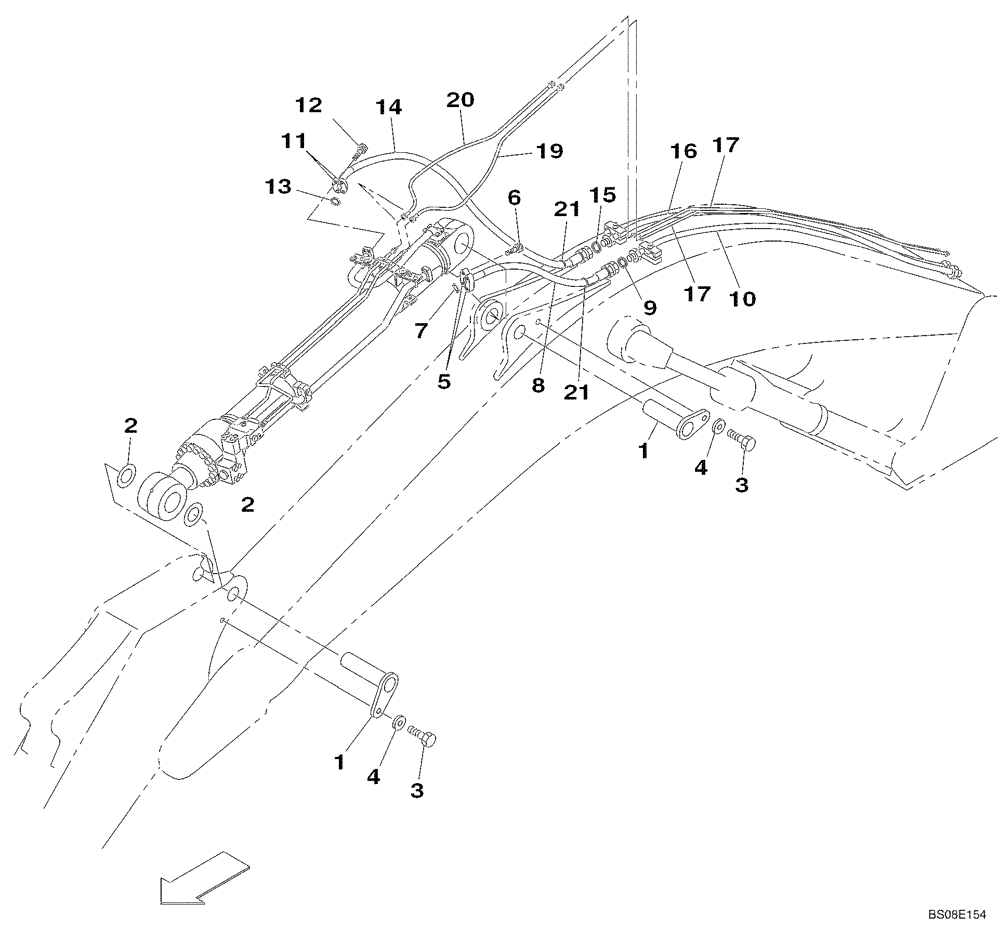

Запчасти Case CX350B (08-23) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KSV1521

PIN

2шт.

2

158451A1

SPACER

2шт.

3

102R020Y035R

BOLT

M20 x 35

2шт.

4

KTV1185

SPACER

2шт.

5

150124A1

FLANGE

2шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 55, Replaces 108R014Y055R

4шт.

7

164450A1

O-RING

1шт.

8

KSV17080

HYDRAULIC HOSE,1250.00 mm

1шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

10

KSV19080

HYD TUBE

Replaces KSV15960Y2

1шт.

11

150124A1

FLANGE

2шт.

12

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 55, Replaces 108R014Y055R

4шт.

13

164450A1

O-RING

1шт.

14

KSV17080

HYDRAULIC HOSE,1250.00 mm

1шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

KSV19090

HYD TUBE

Replaces KSV15990Y2

1шт.

17

KSV16000Y2

HYD TUBE

2шт.

19

KHJ18350

HYDRAULIC HOSE

1350mm

1шт.

20

KHJ18350

HYDRAULIC HOSE

1350mm

1шт.

21

150071A1

MOUNTING CLIP

2шт.
