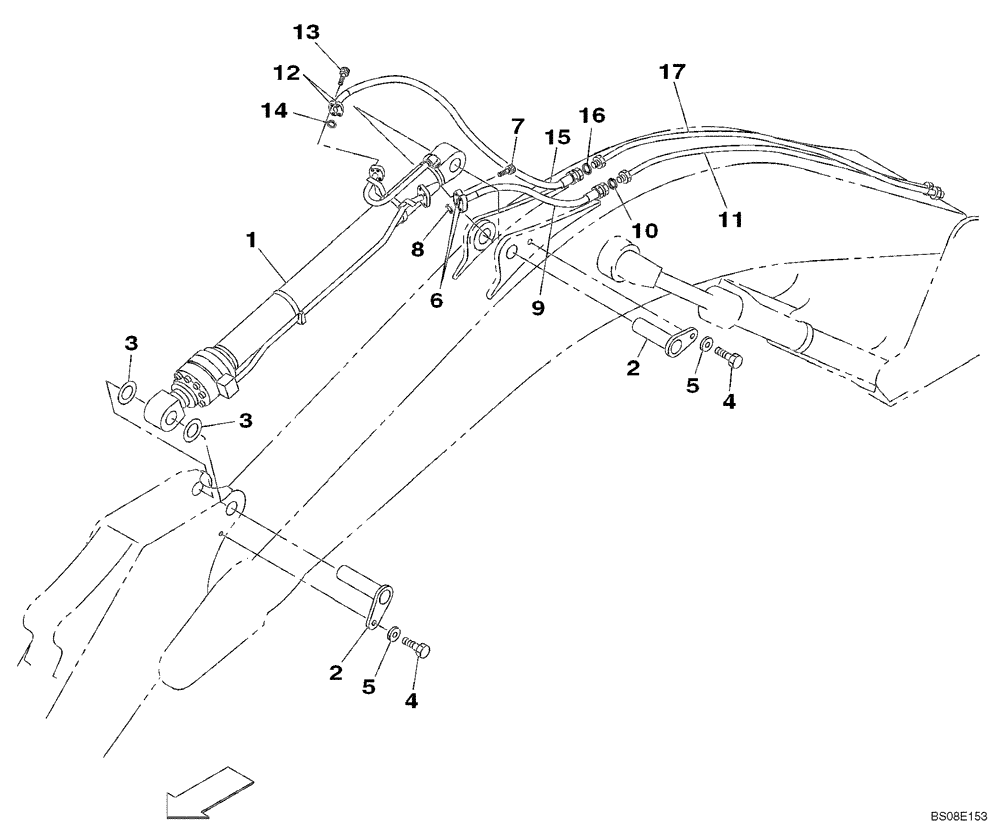

Запчасти Case CX350B (08-21) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

KSV1927

HYDRAULIC CYLINDER

Arm; See Figure 08-22

1шт.

1

KSV1927R

REMAN-HYD CYLINDER

CX350B CRAWLER EXCAVATOR TIER 3 (NA), Arm (5/08-)

1шт.

1

KSV1927C

CORE-HYD CYLINDER

Return Number

1шт.

2

KSV1521

PIN

2шт.

3

158451A1

SPACER

2шт.

4

102R020Y035R

BOLT

M20 x 35

2шт.

5

KTV1185

SPACER

2шт.

6

150124A1

FLANGE

2шт.

7

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 55, Replaces 108R014Y055R

4шт.

8

164450A1

O-RING

1шт.

9

KSV17080

HYDRAULIC HOSE,1250.00 mm

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

Hex, M16 x 70, 10.9

1шт.

11

KSV19080

HYD TUBE

Replaces KSV15960Y2

1шт.

12

150124A1

FLANGE

2шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

Replaces 108R014Y055R

4шт.

14

164450A1

O-RING

1шт.

15

KSV17080

HYDRAULIC HOSE,1250.00 mm

1шт.

16

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

17

KSV19090

HYD TUBE

Replaces KSV15990Y2

1шт.
