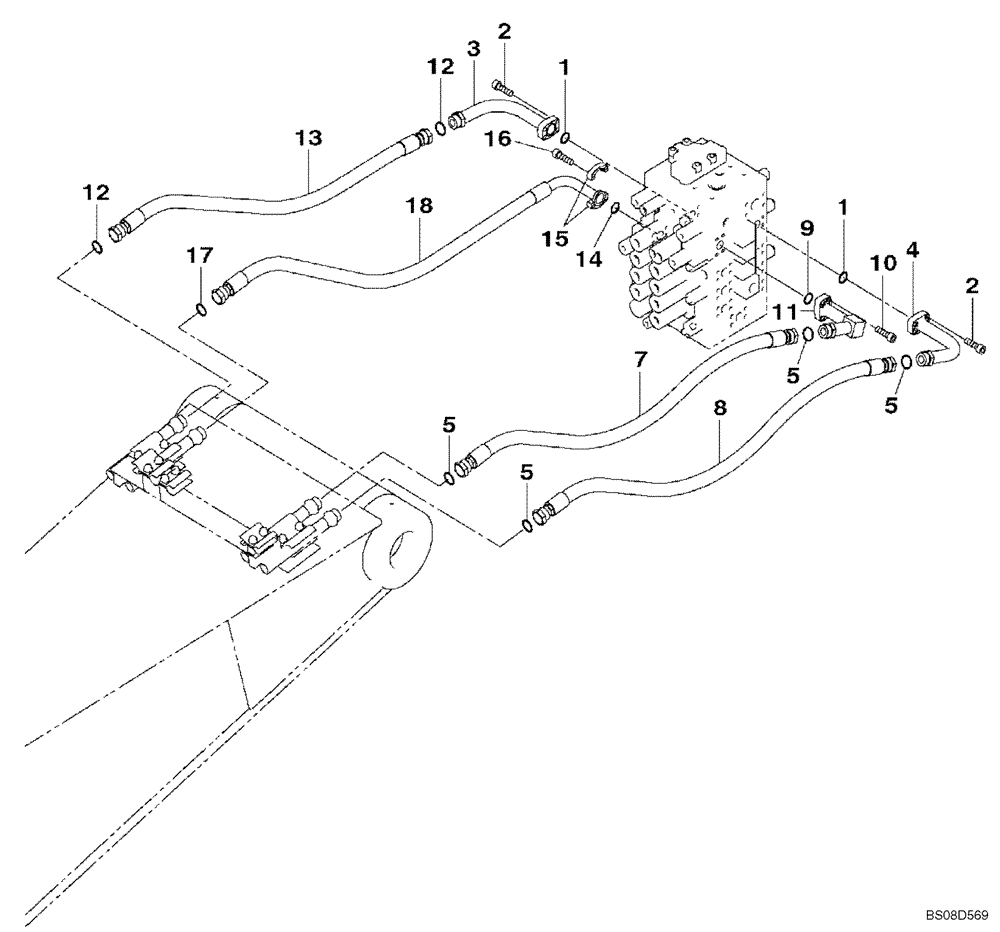

Запчасти Case CX350B (08-15) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

155211A1

O-RING

2шт.

2

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

3

KSJ12290

HYD TUBE

1шт.

4

KSJ12300

HYD TUBE

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

KSJ13740

HYDRAULIC HOSE,1390.00 mm

1шт.

8

KSJ13730

HYDRAULIC HOSE,1490.00 mm

1шт.

9

155211A1

O-RING

4шт.

10

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

11

KSJ12310

HYD TUBE

2шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

13

KSJ13730

HYDRAULIC HOSE,1490.00 mm

1шт.

14

155211A1

O-RING

2шт.

15

153459A1

FLANGE

4шт.

16

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

18

KSJ13750

HYDRAULIC HOSE,1580.00 mm

21шт.
