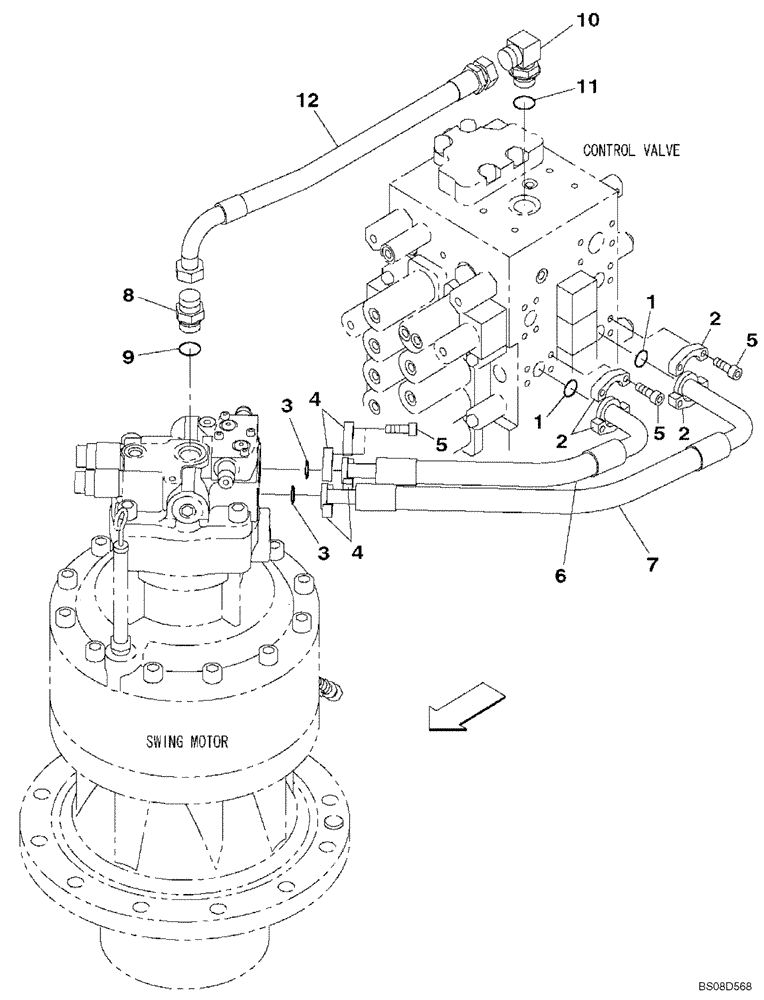

Запчасти Case CX350B (08-14) - HYDRAULICS - SWING (08) - HYDRAULICS

1

155211A1

O-RING

2шт.

2

153459A1

FLANGE

4шт.

3

155210A1

O-RING

2шт.

4

153458A1

FLANGE

4шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

6

KSJ12660

HYDRAULIC HOSE,620.00 mm

1шт.

7

KSJ12670

HYDRAULIC HOSE,810.00 mm

1шт.

8

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 9

1шт.

9

154523A1

O-RING

1шт.

10

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 11

1шт.

11

154523A1

O-RING

1шт.

12

KSJ12650

HYDRAULIC HOSE,680.00 mm

1шт.
