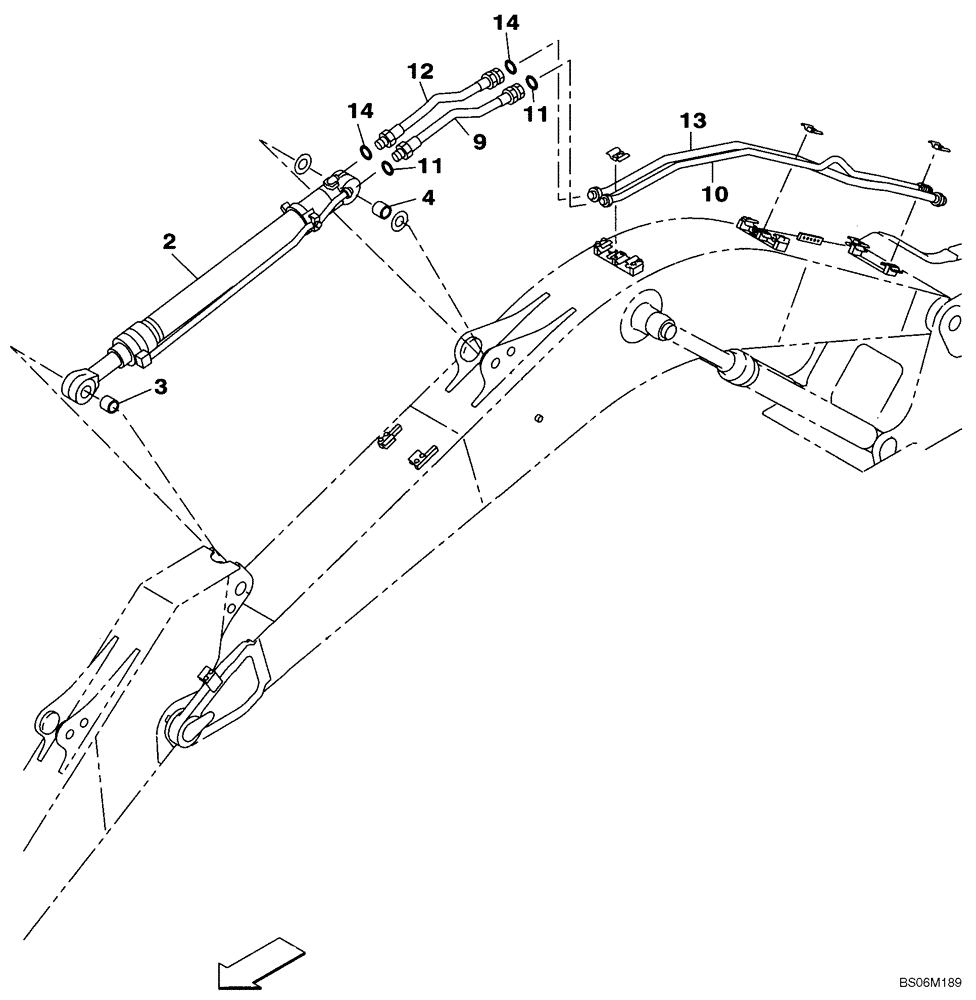

Запчасти Case CX290B (08-12) - HYDRAULICS - ARM CYLINDER LINE (08) - HYDRAULICS

2

KBV13590

HYDRAULIC CYLINDER

Arm; Incl. 3, 4; See Figure 08-85

1шт.

2

KBV13590R

REMAN-HYD CYLINDER

Reman For New P/N KBV13590

1шт.

2

KBV13590C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV10480

SELF LUB RING

1шт.

4

KBV1628

SELF LUB RING

1шт.

9

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

10

KBV14550Y2

HYD TUBE,26 mm ID x 34 mm OD

1шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

12

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

13

KBV14560Y2

HYD TUBE,26 mm ID x 34 mm OD

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
