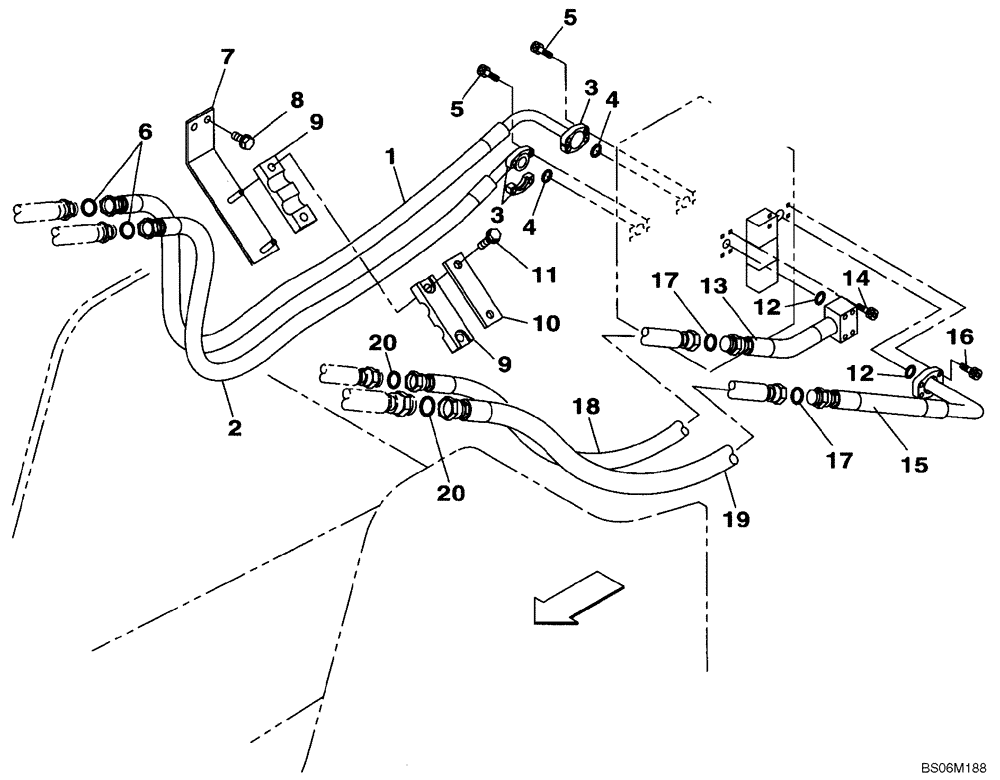

Запчасти Case CX290B (08-11) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

KBJ11530

HYDRAULIC HOSE,19.00 mm ID x 1870.00 mm

1шт.

2

KBJ11540

HYDRAULIC HOSE,19.00 mm ID x 1660.00 mm

1шт.

3

153459A1

FLANGE

Split

4шт.

4

155211A1

O-RING

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

KBJ12550

BRACKET

1шт.

8

166352A1

BOLT

2шт.

9

KRJ10860

HOSE CLIP

2шт.

10

KRJ10870

PLATE

1шт.

11

166052A1

BOLT

2шт.

12

155211A1

O-RING

2шт.

13

KBJ11570

HYD TUBE,26 mm ID x 34 mm OD

1шт.

14

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

15

KBJ11580

HYD TUBE,26 mm ID x 34 mm OD

1шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

18

KBJ11560

HYDRAULIC HOSE,25.40 mm ID x 1350.00 mm

1шт.

19

KBJ12490

HYD TUBE

1400 mm (55-1/8 in)

1шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
