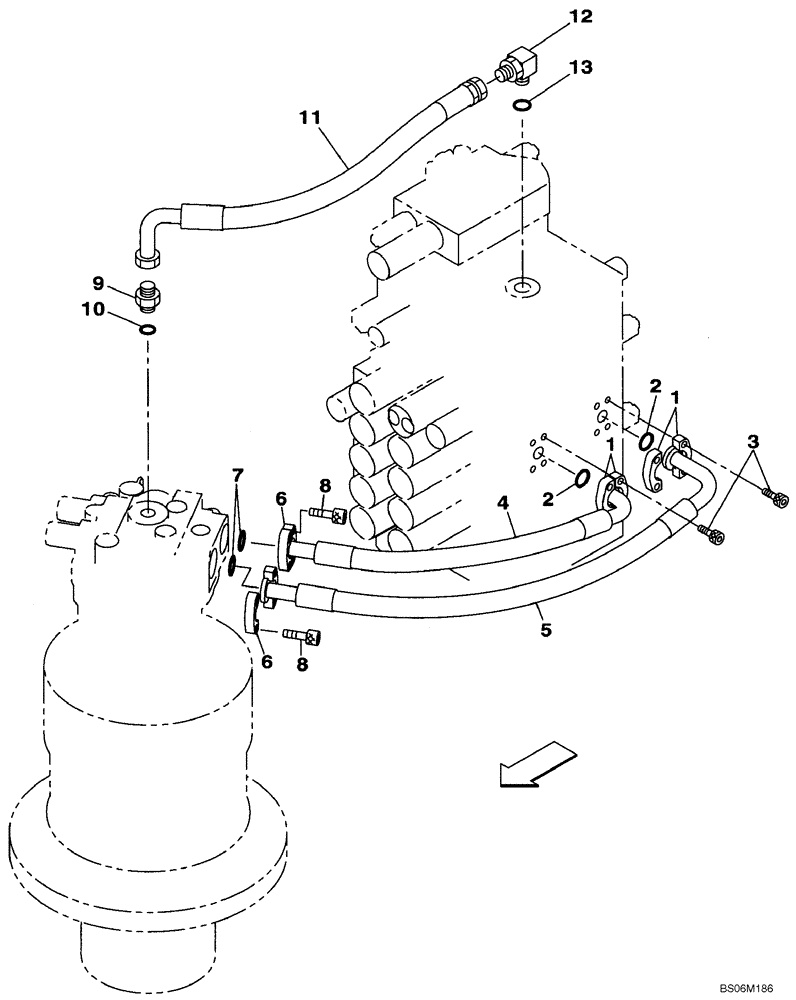

Запчасти Case CX290B (08-09) - HYDRAULICS - SWING (08) - HYDRAULICS

1

153459A1

FLANGE

Split

4шт.

2

155211A1

O-RING

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

4

KBJ12530

HYDRAULIC HOSE,25.40 mm ID x 720.00 mm

1шт.

5

KBJ12540

HYDRAULIC HOSE,25.40 mm ID x 920.00 mm

1шт.

6

153459A1

FLANGE

Incl. 7

4шт.

7

155211A1

O-RING

2шт.

8

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

8шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 10

1шт.

10

154523A1

O-RING

1шт.

11

KBJ11430

HYDRAULIC HOSE,25.40 mm ID x 720.00 mm

1шт.

12

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 13

1шт.

13

154523A1

O-RING

1шт.
