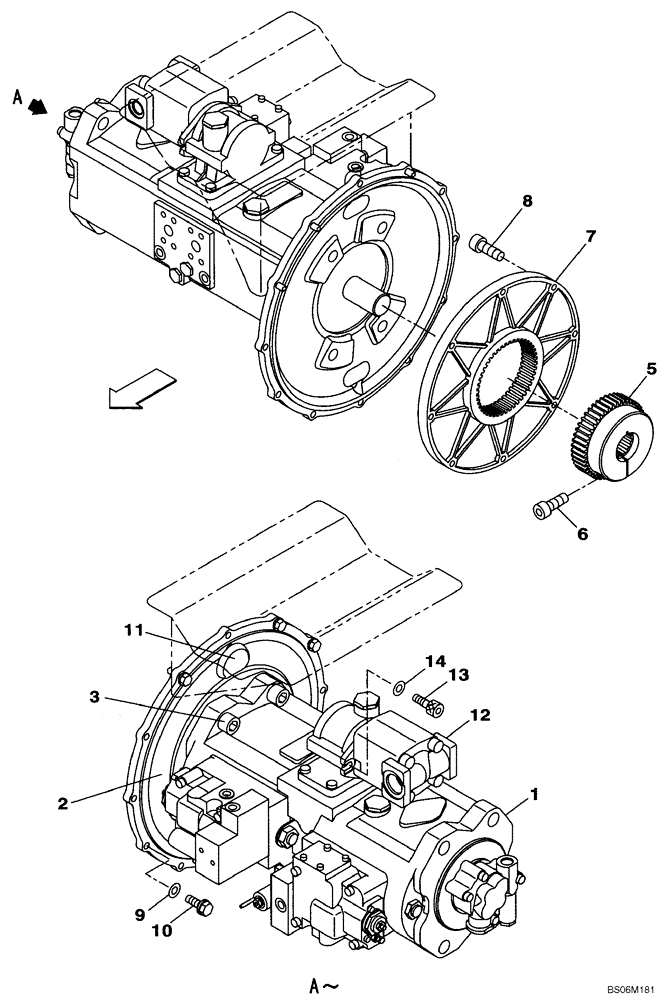

Запчасти Case CX290B (08-04) - PUMP ASSY, HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KBJ12130

HYDRAULIC PUMP

See Figure 08-92 - 08-96

1шт.

2

KSJ2852

FLANGE

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

KSJ2874

COUPLING FLANGE

Incl. 5 - 7

1шт.

5

KSJ2875

HUB

1шт.

6

108R016Y045R

BOLT

1шт.

7

KSJ2666

COVER

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

150409A1

WASHER

9шт.

10

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

11

KHJ2656

GROMMET

2шт.

12

KRJ10300

HYDRAULIC PUMP

Gear, See Figure 08-97

1шт.

12

KRJ10300R

REMAN-HYD PUMP

CX290B CRAWLER EXCAVATOR TIER 3 (NA), Gear, WITH AUXILIARY HYDRAULIC - COUPLING (1/07-)

1шт.

12

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

14

150409A1

WASHER

2шт.

15

154697A1

O-RING

Not Illustrated

1шт.
