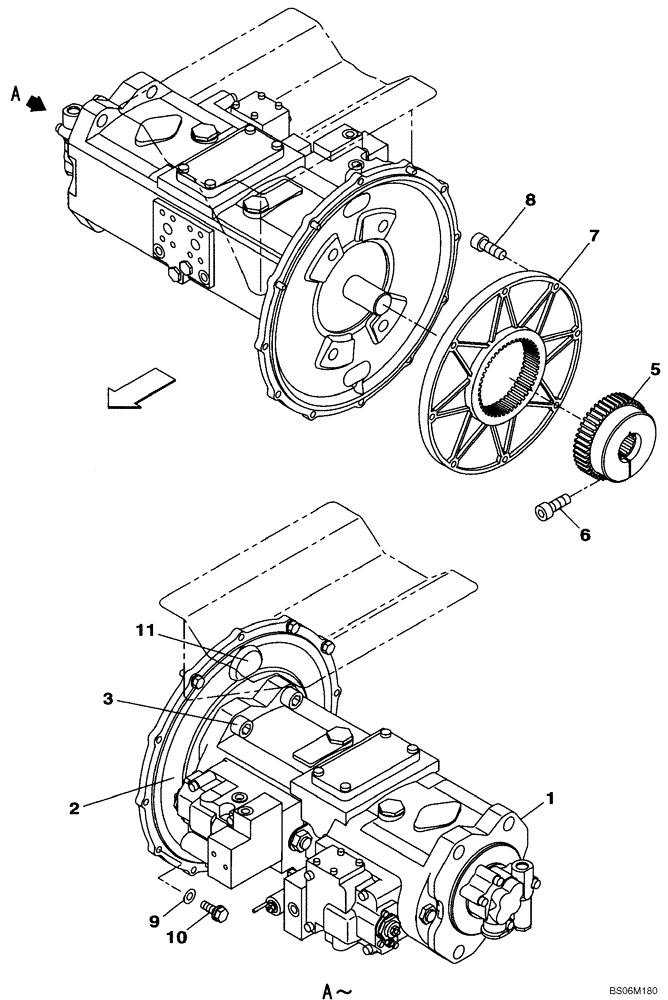

Запчасти Case CX290B (08-03) - PUMP ASSY, HYDRAULIC - STANDARD - COUPLING (08) - HYDRAULICS

1

KBJ11010

HYDRAULIC PUMP

See Figure 08-87 - 08-91

1шт.

1

KBJ14600R

REMAN-HYD PUMP

CX290B CRAWLER EXCAVATOR TIER 3 (NA), COUPLING (1/07-), Reman for New PN KBJ11010

1шт.

1

KBJ14600C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KSJ2852

FLANGE

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

KSJ2874

COUPLING FLANGE

Incl. 5 - 7

1шт.

5

KSJ2875

HUB

1шт.

6

108R016Y045R

BOLT

1шт.

7

KSJ2666

COVER

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

150409A1

WASHER

9шт.

10

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

11

KHJ2656

GROMMET

2шт.
