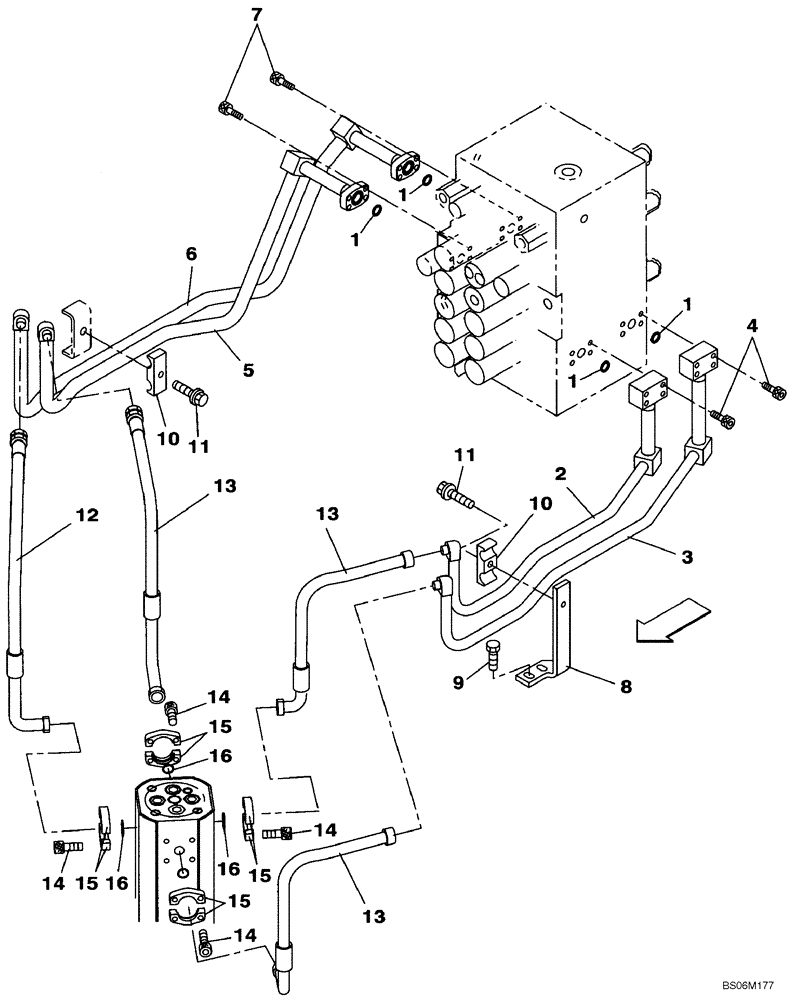

Запчасти Case CX290B (06-06) - HYDRAULICS - TRAVEL (06) - POWER TRAIN

1

155210A1

O-RING

4шт.

2

KBJ11440

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

3

KBJ11450

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

8шт.

5

KBJ11460

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

6

KBJ11470

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

8

KBJ11480

BRACKET

1шт.

9

166352A1

BOLT

2шт.

10

152085A1

COLLAR

2шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

2шт.

12

KBJ11490

HYDRAULIC HOSE,19.00 mm ID x 650.00 mm

1шт.

13

KBJ11500

HYDRAULIC HOSE,19.00 mm ID x 580.00 mm

3шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

15

153459A1

FLANGE

8шт.

16

155211A1

O-RING

4шт.
