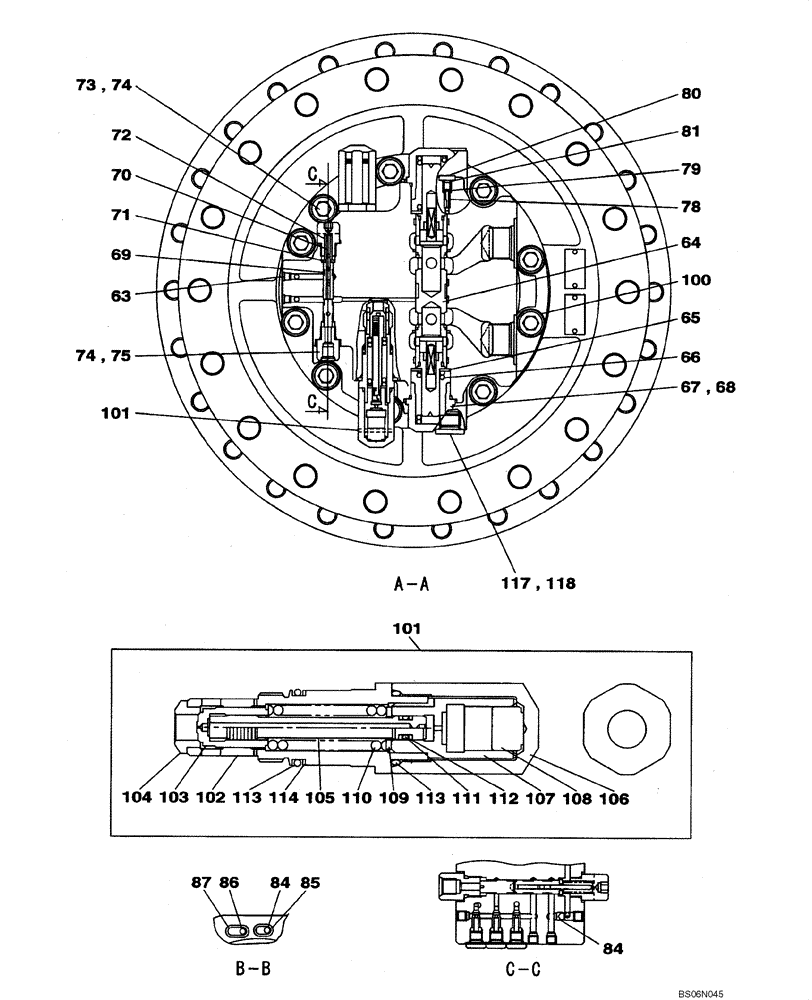

Запчасти Case CX290B (06-04) - MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN

KBA10750

MOTO-REDUCTION GEAR

Includes All Parts On Figures 06-02 - 06-04

1шт.

LJ018700R

REMAN-HYD MOTOR

CX290B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-), ASSY, Reman for New PN KBA10750

1шт.

LJ018700C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

LJ014910

HYDRAULIC MOTOR

Motor, Piston; Includes 63 - 118; Also Includes Parts On Figure 06-03

1шт.

LJ018700R

REMAN-HYD MOTOR

CX290B CRAWLER EXCAVATOR TIER 3 (NA), Motor, Piston, (1/07-), Reman for New PN LJ014910

1шт.

LJ018700C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

63

LK00393

PLUG

14шт.

64

LJ013820

SPOOL

1шт.

65

LR013590

VALVE SEAT

2шт.

66

TG00048

SPRING

2шт.

67

LW004730

COVER

2шт.

68

154569A1

O-RING

2шт.

69

LJ013830

SPOOL

1шт.

70

LA00833

SPECIAL PIN

1шт.

71

LR00866

SPRING SEAT

1шт.

72

LG00433

COMPRESSION SPRING

1шт.

73

LK005340

PLUG

1шт.

74

154475A1

O-RING

2шт.

75

LK00387

SOCKET

1шт.

78

LJ013840

VALVE SECTION

2шт.

79

LG005660

SPRING

2шт.

80

TK00028

PLUG

5шт.

81

154455A1

O-RING

5шт.

84

TK00140

RESTRICTOR

2шт.

85

155063A1

O-RING

1шт.

86

LK005000

RESTRICTOR

1шт.

87

154479A1

O-RING

1шт.

100

108R018Z050B

BOLT

10шт.

101

LJ00958

VALVE, PRESSURE RELI

EF Incl. 102 - 114

2шт.

102

LK00386

SOCKET

1шт.

103

LJ00959

VALVE

1шт.

104

LR00863

SEAT, VALVE

1шт.

105

LJ00960

PISTON

1шт.

106

LR00864

CAP

1шт.

107

LH00322

SLEEVE

1шт.

108

LJ00961

PISTON

1шт.

109

LH00323

SHIM

1шт.

110

LG00432

COMPRESSION SPRING

1шт.

111

154451A1

O-RING

1шт.

112

153943A1

BACK-UP RING

2шт.

113

154509A1

O-RING

2шт.

114

153987A1

BACK-UP RING

1шт.

117

LK005350

PLUG

2шт.

118

154487A1

O-RING

2шт.
