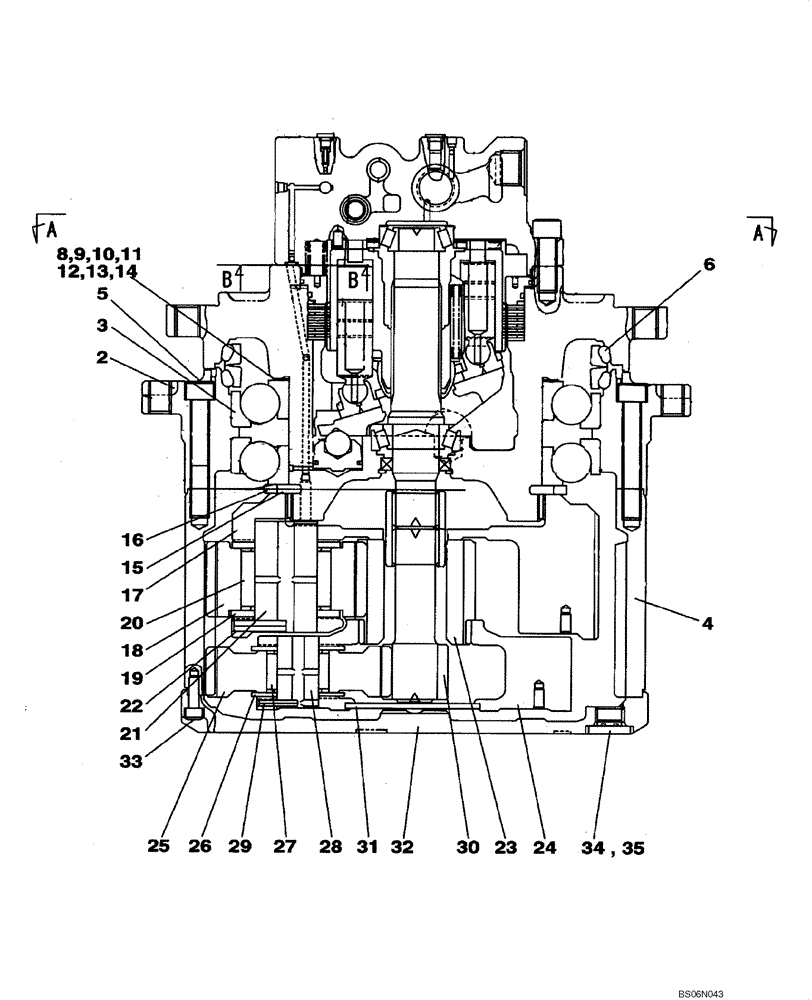

Запчасти Case CX290B (06-02) - MOTOR ASSY - GEAR ASSY, REDUCTION (06) - POWER TRAIN

KBA10750

MOTO-REDUCTION GEAR

Includes All Parts On Figures 06-02 - 06-04

1шт.

LJ018700R

REMAN-HYD MOTOR

CX290B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-), ASSY, Reman for New PN KBA10750

1шт.

LJ018700C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

LN001980

REDUCER

Motor, Piston; Incl. 2 - 35

1шт.

2

LT00126

HOUSING

1шт.

3

LB00791

BEARING, BALL

2шт.

4

LC002980

RING GEAR

1шт.

5

863-18100

HEX SOC SCREW,M18 x 100mm, Cl 12.9

22шт.

6

LE00993

SEAL

1шт.

LH00388

SHIM

Incl. 8 - 14

1шт.

8

LH00421

SHIM,1.3mm Thk

1шт.

9

LH00422

SHIM,1.4mm Thk

1шт.

10

LH00423

SHIM,1.5mm Thk

1шт.

11

LH00424

SHIM,1.6mm Thk

1шт.

12

LH00425

SHIM,1.7mm Thk

1шт.

13

LH00426

SHIM,1.8mm Thk

1шт.

14

LH00427

SHIM,1.9mm Thk

1шт.

15

LA00832

LOCK WASHER

2шт.

16

LE00992

RING

1шт.

17

LN00120

HOUSING

1шт.

18

LC00202

PLANETARY GEAR

3шт.

19

LA00835

WASHER

6шт.

20

LB011160

NEEDLE BEARING

3шт.

21

LA00907

PIN

3шт.

22

338W100Z056N

DOWEL

3шт.

23

LC00201

SUN GEAR

1шт.

24

LN00119

HOUSING

1шт.

25

LC00199

PLANETARY GEAR

3шт.

26

LA00830

WASHER

6шт.

27

LB011170

NEEDLE BEARING

3шт.

28

LA00906

PIN

3шт.

29

338W060Z036N

PIN

3шт.

30

LC002990

SUN GEAR

1шт.

31

LR00857

PLATE

1шт.

32

LW005140

COVER

1шт.

33

108R010Z025B

BOLT

18шт.

34

LK00383

PLUG

2шт.

35

154503A1

O-RING

2шт.
