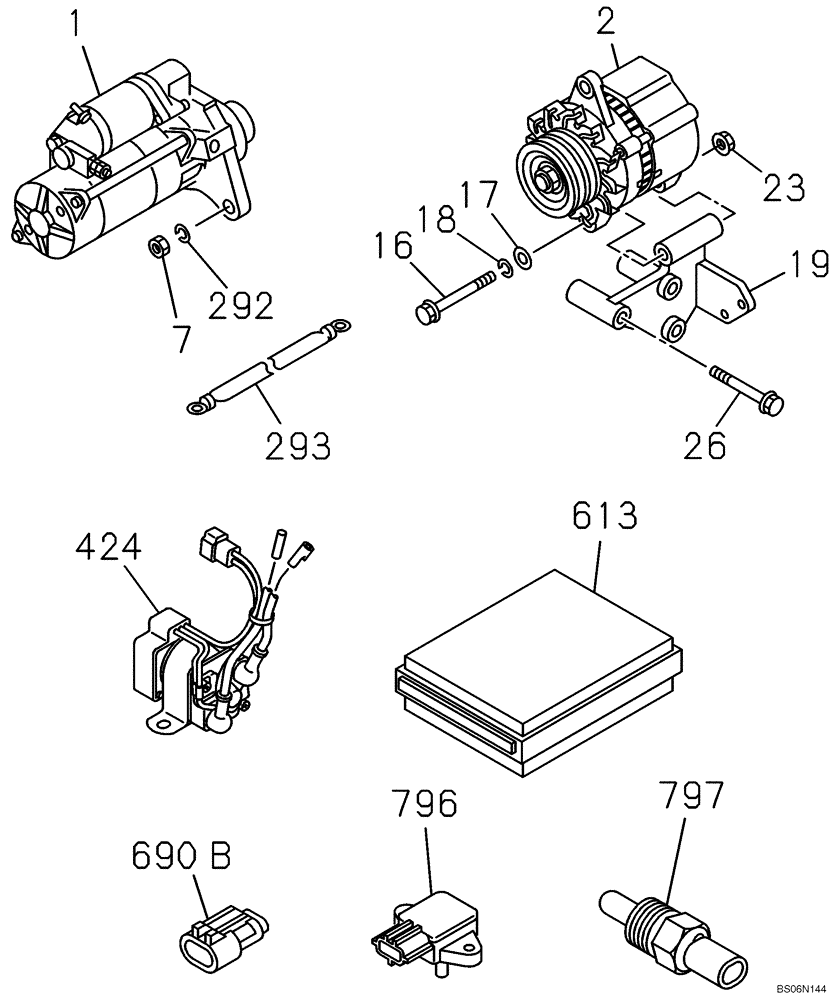

Запчасти Case CX290B (04-01) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

1

437990A1

STARTING MOTOR

24V5.0Kw; See Figure 04-05

1шт.

1

87667305R

REMAN-STARTER

CX290B CRAWLER EXCAVATOR TIER 3 (NA), 24V5.0Kw (1/07-), Reman for New PN 437990A1

1шт.

1

87667305C

CORE-STARTER

Return Number

1шт.

2

438007A1

ALTERNATOR

24V50A; See Figure 04-06

1шт.

2

438007A1R

REMAN-ALTERNATOR

CX290 Tier3

1шт.

2

438007A1C

CORE-ALTERNATOR

Return Number

1шт.

7

87380187

NUT

2шт.

16

289045A1

BOLT

1шт.

17

426397A1

WASHER,14mm ID x 26mm OD x 2.3mm Thk

1шт.

18

87380190

WASHER

1шт.

19

437983A1

BRACKET

1шт.

23

437982A1

SUPPORT

1шт.

26

437852A1

BOLT

3шт.

292

87380190

WASHER

2шт.

293

438016A1

CABLE ASSY.

1шт.

424

167624A1

RELAY,24V

Safety, Starter

1шт.

613

87726522

ECU

CONTROLLER ENGINE, Replaces 87599917

1шт.

613

84169247R

REMAN ELECT CONTROL

CX290B CRAWLER EXCAVATOR TIER 3 (NA), CONTROLLER ENGINE (1/07-), Reman for New PN 87726522

1шт.

613

84169247C

CORE-ELECTRONIC CONT

Return Number

1шт.

690b

87380195

FITTING

1шт.

796

87379337

SENSOR

Pressure

1шт.

797

87378549

SENSOR

Temperature

1шт.
