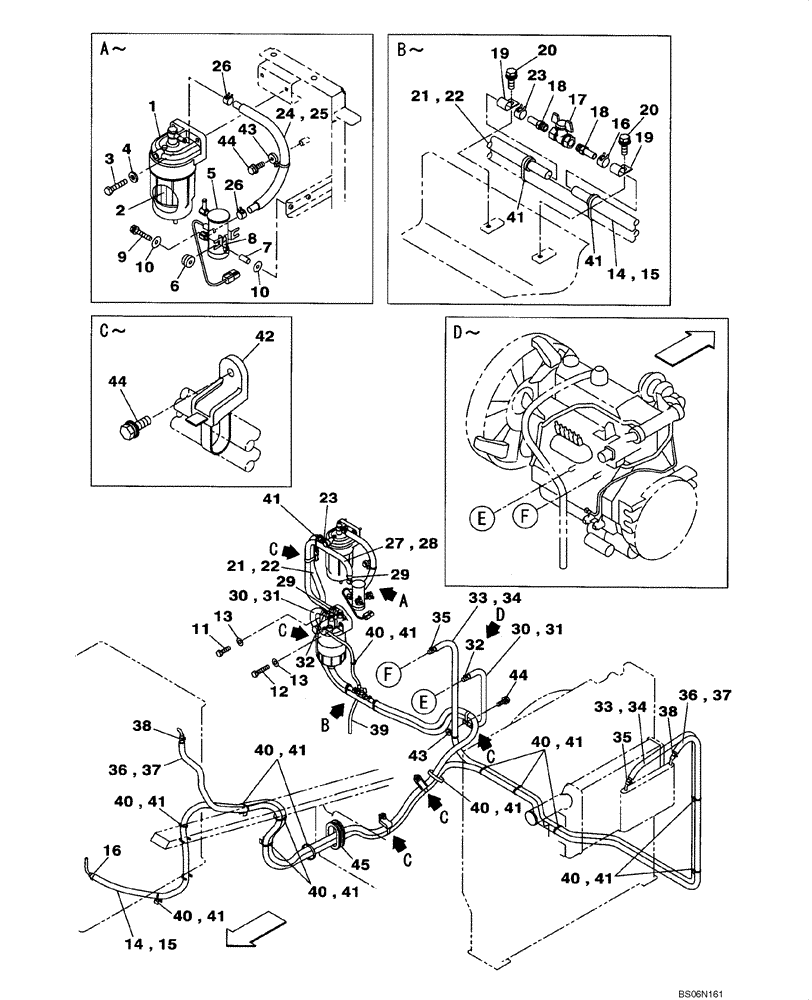

Запчасти Case CX290B (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KHH12020

FILTER ASSY

Incl. 1A - 2C, Replaces KHH10550

1шт.

1a

158678A1

GASKET

Not Illustrated; Replaces KHH10570

4шт.

1b

158676A1

GASKET

Not Illustrated; Replaces KHH10580

1шт.

2

KHH12030

FUEL FILTER

Incl. 2A, 2B, Replaces KHH10590

1шт.

2a

LBQ5245

O-RING

Not Illustrated

1шт.

2b

KHH10600

GASKET

Not Illustrated

1шт.

2c

155467A1

PLUG, DRAIN

Not Illustrated

1шт.

3

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

4

153081A1

WASHER

2шт.

5

KHH11880

FEED PUMP

Incl. 6 - 8; Replaces KHH10460

1шт.

6

KHH10470

GROMMET

2шт.

7

KHH10480

COLLAR

2шт.

8

KHH11890

FILTER SCREEN

Replaces KHH10490

1шт.

8a

KHH11900

GASKET

Not Illustrated

1шт.

9

162057A1

BOLT,Spcl, M6 x 35mm

2шт.

10

150529A1

WASHER

4шт.

11

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

12

102R008Y075R

BOLT

1шт.

13

153081A1

WASHER

3шт.

14

KHH11640

FUEL HOSE,4300.00 mm

1шт.

15

KHR16250

PLASTIC-RUBBER TUBE

1шт.

16

KHH0405

MOUNTING CLIP

2шт.

17

158923A1

DRAIN VALVE

1шт.

18

157929A1

FITTING

2шт.

19

162148A1

CLIP

2шт.

20

KHJ1215

BOLT,Spcl

2шт.

21

KHH10980

HYDRAULIC HOSE,9.70 mm ID x 1000.00 mm

1шт.

22

KHR13380

PLASTIC-RUBBER TUBE

1шт.

23

KHH0405

MOUNTING CLIP

2шт.

24

KHH11650

FUEL HOSE

1шт.

25

158060A1

PLASTIC-RUBBER TUBE

1шт.

26

KHH0405

MOUNTING CLIP

2шт.

27

KHH11020

HYDRAULIC HOSE,9.70 mm ID x 750.00 mm

1шт.

28

KHR13370

PLASTIC-RUBBER TUBE

1шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH10150

FUEL HOSE,2000.00 mm

1шт.

31

KHR13390

PLASTIC-RUBBER TUBE

1шт.

32

KHH0405

MOUNTING CLIP

2шт.

33

KHH11540

FUEL HOSE

1шт.

34

KHR15910

PLASTIC-RUBBER TUBE

1шт.

35

KHH0405

MOUNTING CLIP

2шт.

36

KHH11550

FUEL HOSE,5000.00 mm

1шт.

37

KHR15920

PLASTIC-RUBBER TUBE

1шт.

38

KHH0405

MOUNTING CLIP

2шт.

39

KHH11720

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

Replaces KHH10820

1шт.

40

KHR10220

MOUNTING CLIP

14шт.

41

150496A1

MOUNTING CLIP

20шт.

42

KHR2581

CLAMP

5шт.

43

KHR2584

CLAMP

2шт.

44

KHJ1215

BOLT,Spcl

7шт.

45

KRH10610

SEAL PROTECTION

1шт.

46

KHH10290

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

Not Illustrated

1шт.
